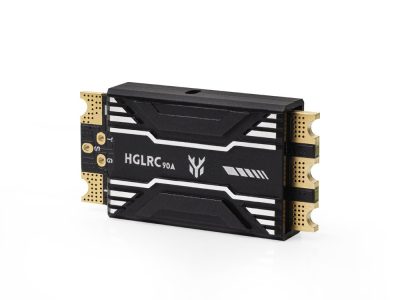

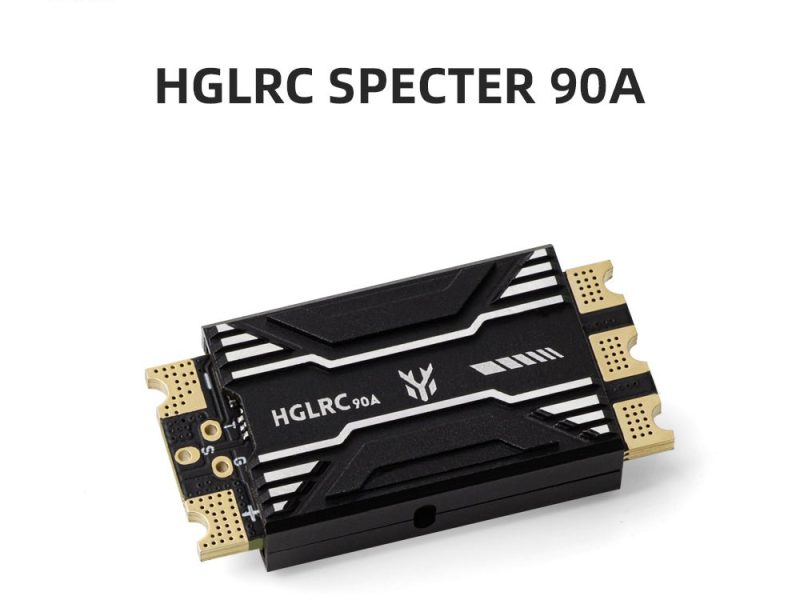

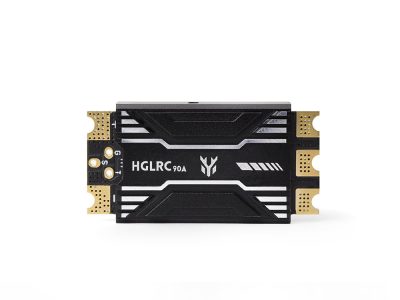

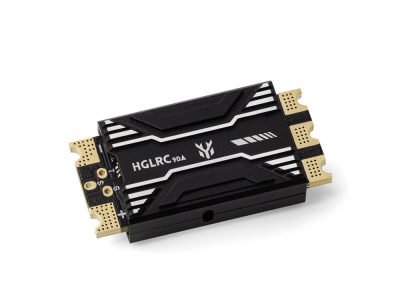

HGLRC SPECTER 90A single ESC High-performance professional ESC & distribution board

Product features: Double-sided fully wrapped CNC shell, efficient heat dissipation, isolation of foreign matter Dual MOS parallel solution, supports 90A continuous current, can withstand up to 100A peak current Support…

Specifications

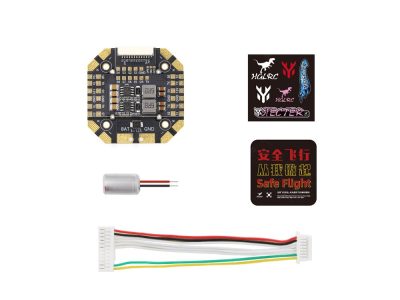

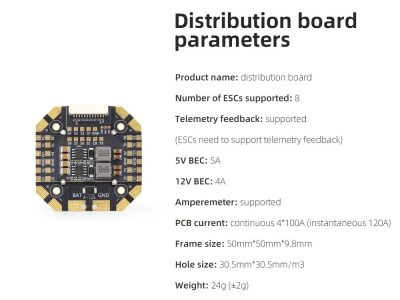

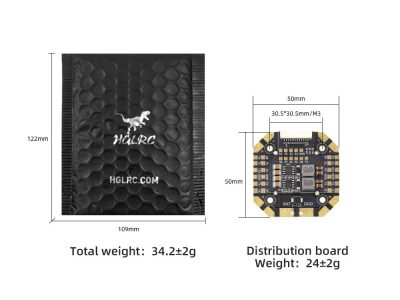

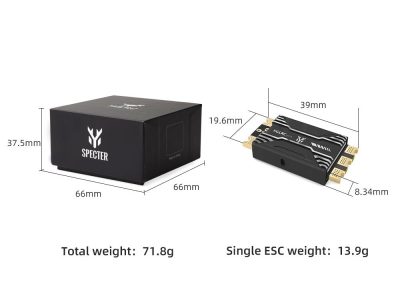

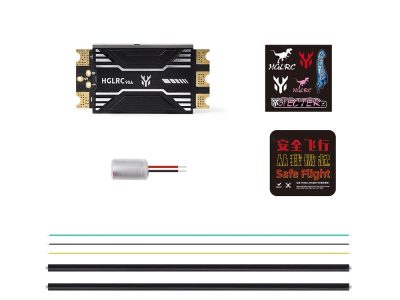

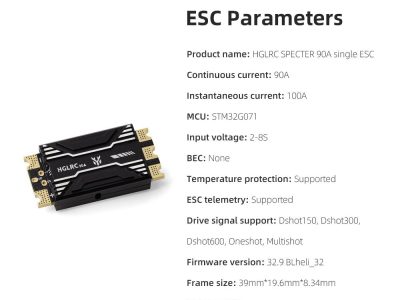

Product features: Double-sided fully wrapped CNC shell, efficient heat dissipation, isolation of foreign matter Dual MOS parallel solution, supports 90A continuous current, can withstand up to 100A peak current Support BL32 ESC telemetry, more stable ESC firmware, real-time monitoring of ESC parameters High-performance MCU G071, operating frequency up to 64MHz Technical parameters: Name: HGLRC Specter 90A ESC Frame size: 39mm*19.6mm*8.34mm Weight: 13.9g Firmware version: BLheli32 32.9 MCU: STM32G071 Continuous current: 90A Instantaneous peak current: 100A Working voltage: 2-8S Temperature protection: Support Electric speed control telemetry: Support Drive signal: Dshot150, Dshot300, Dshot600, Oneshot, Multishot HGLRC 8-port 12S V2 Charger Board Number of ESCs Supported: 8 Telemetry Feedback: Supported(ESCs must support telemetry) 5V BEC: 3A 12V BEC: 3A 24V BEC: 3A Current Sensor: Supported PCB Current: Continuous 4*100A(Peak 120A) Outer Dimensions: 50mm*50mm*9.8mm Mounting Hole Pattern: 30.5mm*30.5mm/M3 Weight: 26.5g(+2g) Delivery list HGLRC SPECTER 90A ESC 50V 470UF solid capacitor Red heat shrink tubing Black heat shrink tubing Black 12AWG power cord 20cm Black, green and yellow 30AWG silicone wire 20cm
