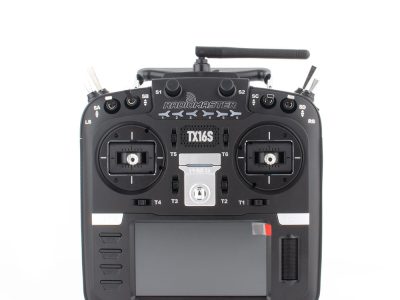

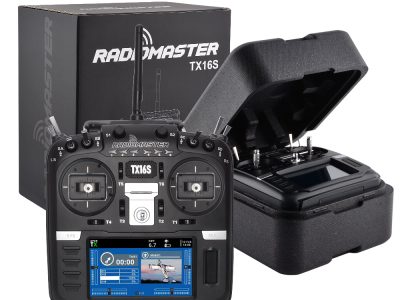

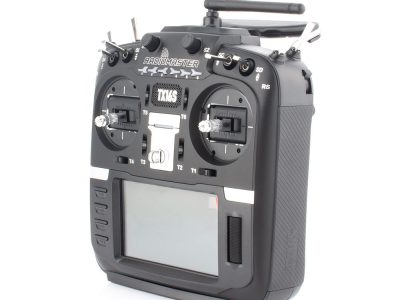

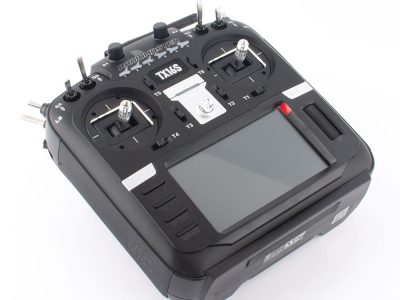

TX16S Hall Radio Controller

RadioMaster set out to create the very best radio in its class without compromises. The TX16s has the best of everything we could fit into the radio today along with…

Specifications

RadioMaster set out to create the very best radio in its class without compromises. The TX16s has the best of everything we could fit into the radio today along with expandability and upgradeability for the future such as our Touch panel ready motherboard that will support future touch compatible version of OpenTX firmware and UART expansion slots. Our super smooth precision HALL gimbals with CNC facias offer refined looks and performance. Built-in USB-C charger, class-leading ergonomics, internal Multi-Module as standard, improved key layout and menu navigation, external SD port, improved sliders and more! Specification Type: TX16S Hall Radio Controller Size: 286.9*128.9*183.8mm Weight: 750g (without battery) / 820g (with 2 x 18650 batteries installed) Voltage: DC7-8.4V Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included) Current: 350mah (NO CRSF) Channel: 16ch External Micro SD slot: Card Included 2 x External UART Expansion Ports Touch Panel installed (Requires OpenTX/EdgeTX 2.4 Update) Features STM32F429BIT6 MCU Industrial grade 4.3 inch IPS 480*272 Screen with touch Compatible with OpenTX Wheel menu button Full Size HALL sensor gimbals with CNC Aluminum Facia Internal Multi-protocol 4-in–1 (4 Chip) RF System Native Full Speed TBS Crossfire support (400K) Supports Telemetry (Protocol and Receiver dependent) Memory 16M (can be expanded by Micro SD card) Voice function Vibration reminder function Improved JR module slot 6-Flight Mode Buttons (Pixhawk, custom functions and more!) Three-color LED status display USB-C Charging port USB-C Simulator and PC connection port. External UART ports to expand the capabilities of your radio Internal Multi-protocol RF The TX16s internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. OpenTX Supported RadioMaster has worked in collaboration with OpenTX to bring the TX16s into the market and will continue to work with OpenTX to provide support to the project and ensure the concepts of open standards are carried forward today and in the future. HALL Sense Gimbals The high-quality precision Hall Sensor gimbals with CNC Aluminium Facias provide the ultimate experience in this class of radio. 4.3” IPS Color Display The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions. * Touch Panel included with TX16S Hall and TX16S Hall MasterFire combo only. Touch functionality requires OpenTX 2.4 (coming soon). TX16S Standard version is Touch Panel ready and can be upgraded with optional touch panel sold separately. External Module Bay The TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping. High-Density Foam Case The included storage box is made from high-density shockproof EPP foam. Ideal for safe storage and transport of your TX16s. Convenient Charging The TX16s features built-in USB-C charging with a 2s Battery Management System to balance charge 7.4v Li-ion or Li-Poly batteries. Our built-in charger features over current protection and temperature sensors to ensure safe charging. Bigger is Better Extra-large battery compartment. Built-in USB-C charging for 2 * 4.2V Li-lon batteries or 2 cells li-poly battery. Anti-slip Rubber Grips Balanced ergonomics provide the ultimate grip and comfort for hours of use. Easy Firmware Updates Radio Overview Radio Size Package Includes 1 * TX16S Transmitter 1 * 18650 Tray 1 * USB-C Cable Disclaimer for Discontinued and End-of-Life Stock Products sold as clearance or end-of-life stock are final sales and do not qualify for our standard 1-year warranty. However, we stand behind the quality of our products and offer the following limited warranty: DOA Policy: If the product is non-functional upon arrival, you may request a replacement or repair within 7 days of delivery. Manufacturer Defects: We will repair or replace items with proven manufacturer defects within 30 days of purchase. Stock is limited, and replacements may not always be available. If you have any questions, feel free to contact us before making your purchase.
