XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver

The XR3 Receiver is a versatile, ultra-compact ExpressLRS receiver measuring just 20 × 15 mm. Powered by the third-generation Semtech LR1121 transceiver, the XR3 operates on either the 2.4 GHz…

Specifications

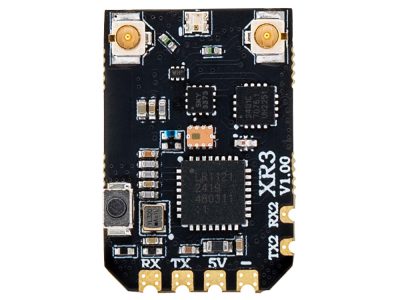

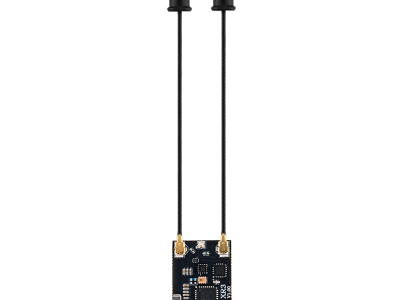

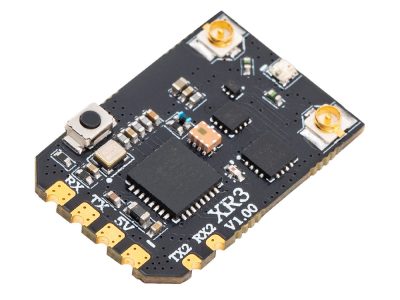

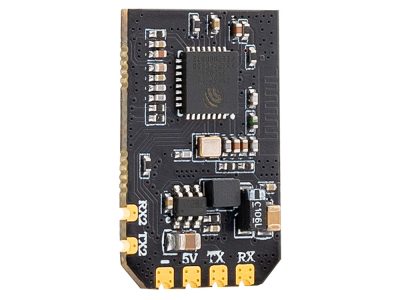

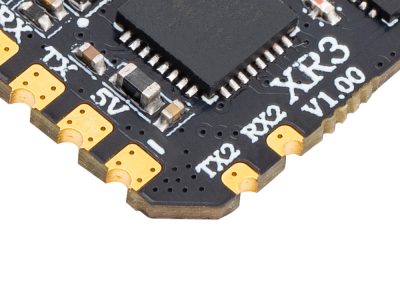

The XR3 Receiver is a versatile, ultra-compact ExpressLRS receiver measuring just 20 × 15 mm. Powered by the third-generation Semtech LR1121 transceiver, the XR3 operates on either the 2.4 GHz or Sub-G 900 MHz bands. Whether using 2.4 GHz or 900 MHz, the XR3 delivers strong range and sensitivity in a small, lightweight package—well suited for a wide range of builds. With the reliability of ExpressLRS, you can focus on operation without worrying about link quality. Designed for convenience, the XR3 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease. For more details and support, visit expresslrs.org. Features Antenna Diversity for improved signal stability and range ExpressLRS 2.4GHz or Sub-G 900MHz ESP32C3 high-performance MCU Semtech LR1121 Transceiver Additional UART port Secondary port for advanced functionality Castled pads for easy soldering Specification Item: XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver Type: ISM2.4 or CE868 MCU: ESP32C3 RF Chip: LR1121 RF connector: IPEX-1 X 2 Antenna: 2x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package) Frequency Range: 2.4GHz / Sub-G 900MHz Telemetry Power: 100mw Maximum receive refresh rate: DK500Hz / K1000Hz Minimum receiver refresh rate: 25Hz Working voltage: DC 4.5 – 8.4V Weight: 1.3g (without antenna) Dimension: 22mm * 15mm * 4mm Firmware Version: ExpressLRS v3.5.1 pre-installed FW Target: RadioMaster XR3 2.4/900 Diversity RX Bus interface 1: CRSF Bus interface 2: UART Antenna Diversity The XR3 receiver features a Skyworks RFX2401C providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry performance and antenna switching for antenna diversity. Tailored to Your Needs The XR3 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver! Weight Dimensions Associated Products XR1 Nano Multi-Frequency ExpressLRS Receiver XR2 Nano 2.4GHz ExpressLRS Receiver XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver 2.4GHz / Sub-G 900MHz Dual-Band T Antenna UFL 2.4Ghz T Antenna 65mm/95mm for ELRS Receivers UFL 915/868MHz T & Y Antenna for BR Series Receivers Download XR3 Receiver User Manual Package Includes 1 * XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver 2 * T Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package) 1 * CRSF Wire 3 * Heat-Shrinkable Tube 1 * Manual Card XR3 Receiver is installed with ExpressLRS as standard. ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It’s highly customizable and perfect for RC enthusiasts looking for reliability and efficiency. Pair your ExpressLRS with Radiomaster’s top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you. Find out more about ExpressLRS here
