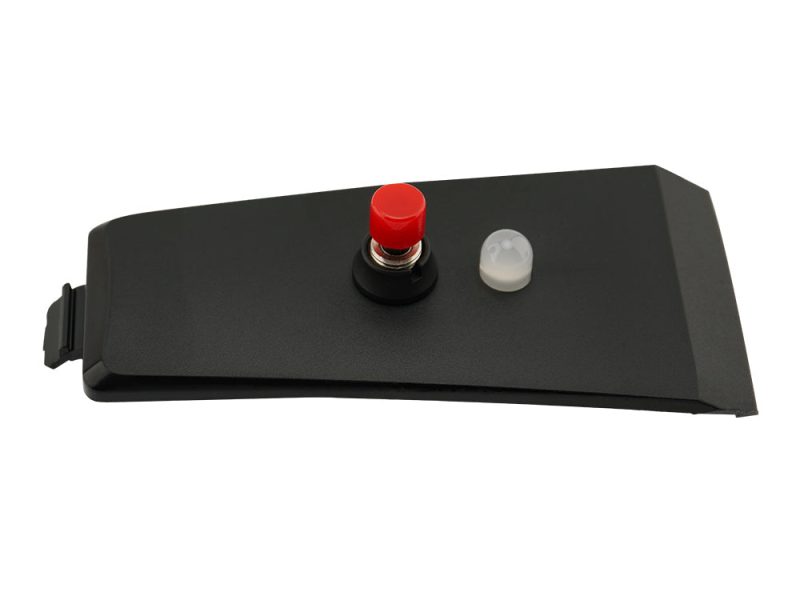

MT12 Gyro Control модуль

The MT12 gyro enables control of two channels using hand gestures, allowing you to operate devices such as a pan/tilt подвес, RC tank turret, rear wheel steering, и more. When…

Specifications

The MT12 gyro enables control of two channels using hand gestures, allowing you to operate devices such as a pan/tilt подвес, RC tank turret, rear wheel steering, и more. When installed in the MT12 expansion slot, this two-axis gyro integrates your hand movements into the control stream through the advanced mixing и programmability of EdgeTX. The only limit is your imagination! Specifications Power Supply: DC 3.3V Weight: 8.3g Dimensions: 65.0*33.0 mm X-axis Angle дальность: 90° [-45° to 45°] Y-axis Angle дальность: 90° [-45° to 45°] Installation Remove the аккумулятор from the bottom of the MT12 Remove the top cover from the MT12 by pushing away from the grip Install the Gyro модуль at the top of the radio base Plug the cable into the 5pin connector in the аккумулятор compartment How to use Settings related to MT12 Radio 1. Press the “SYS” button и use the “PAGE” button to navigate to the “HARDWARE” menu. набор “S3” и “S4” under “Pots” to “Axis X” и “Axis Y”, respectively, as shown in the diagram below: *Arrows behind Axis X и Axis Y represent the direction settings. After selecting с the scroll wheel, you can press the scroll wheel to modify the direction. 2. Calibration in MT12. Press the “SYS” button и use the “PAGE” button to navigate to the “HARDWARE” menu. Enter the “[Calibration]” menu to calibrate. The calibration method is the same as the process для calibrating other inputs on MT12. At the “набор AXIS MIDPOINT” step, place the MT12 on a table и keep it level, then press the scroll wheel to calibrate the neutral point. At the “MOVE AXIS/POTS” step, in addition to calibrating the maximum values of the existing directions и throttle, you also need to pick up the MT12 и move it back и forth и side to side, с angles greater than 45 degrees. 3. Input menu settings. Press the “MDL” button, then use the “PAGE” button to navigate to the “INPUT” menu. You must bind the gyro output to two input channels in this menu. для example, bind Axis X (S3) to “I09” и Axis Y (S4) to “I10”. для “I09” as an example, enter the “Edit” menu of input channel 09. Select “Source” и press the scroll wheel, which will cause it to blink. At this point, tilt MT12 left и right, и the system will automatically switch the input source to “Source S3”, as shown in the diagram below: 4. Mixer menu settings. Press the “MDL” button, then use the “PAGE” button to navigate to the “MIXER” menu. In this menu, you need to bind the gyro inputs to the actual приёмник output channels. для example, use left-right tilting (Axis X) to control channel 3, и use forward-backward tilting (Axis Y) to control channel 4. для channel 3 as an example, enter the “Edit” menu для channel 3. Select “Source” и press the scroll wheel, which will cause it to blink. At this point, tilt MT12 left и right, и the system will automatically switch the input source to “I09”, as shown in the diagram below: Gyro датчик Calibration To accommodate different users’ holding gestures, you can calibrate the датчик’s neutral point by pressing и holding the red button для 2 seconds. During calibration, the red light will flash. A steady green light indicates normal operation. Associated Products MT12 Surface Radio Expansion модули для MT12 Surface Radio MT12 аксессуары Package Includes 1 * MT12 Gyro Control модуль 1 * 5pin JST cable（installed on модуль）
