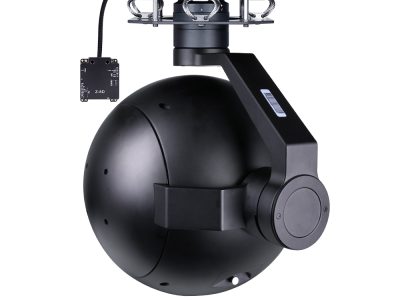

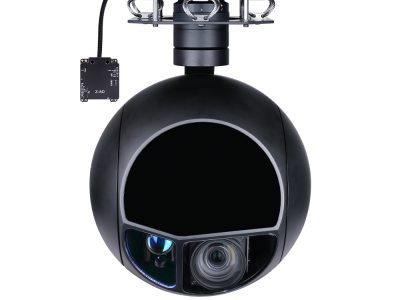

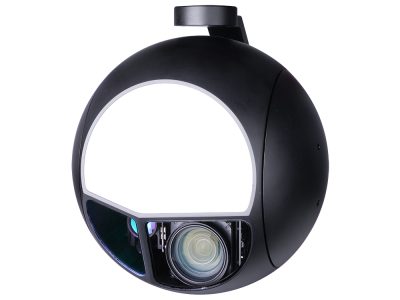

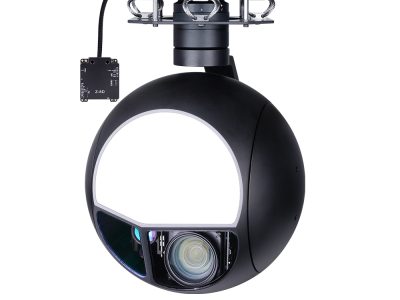

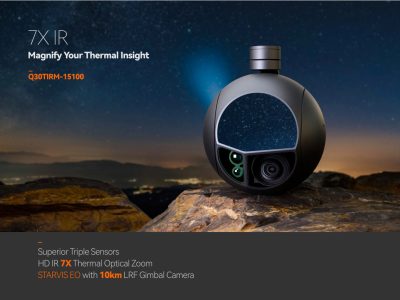

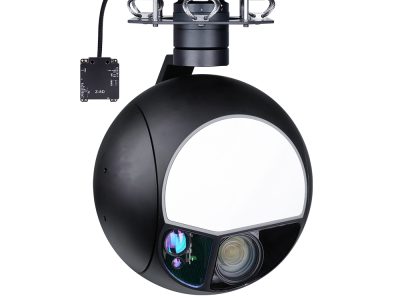

Q30TIRM-15100

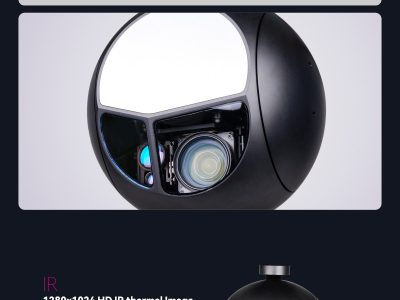

1280 IR Thermal Series

Hardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current1000~1500mA @ 16VPower consumptionAverage 16W, Max 24WWorking environment temp.-20℃ ~ +50℃Output (optional)IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) / SDI (1080P…

Specifications

Working voltage 16V
Input voltage 4S ~ 6S (14.8V~25.2V)
Output voltage 5V (connect with PWM)
Dynamic current 1000~1500mA @ 16V
Power consumption Average 16W, Max 24W
Local-storage TF card (Up to 512 GHz,class 10, FAT32 format)
Picture storage format in TF card JPG(1920*1080)
Video storage format in TF card MP4(1080P 30fps)
Control method PWM / TTL / S.BUS / TCP / UDP
Vibration angle Pitch/Roll/Yaw: ±0.02°
One-key to center √
Imager Sensor 1/1.8 Type STARVIS CMOS Sensor
Picture quality 4.17MP
Lens optical zoom 30x, f=6.5~162.5mm, F1.6 to F4.8
Digital zoom 12x (max. 432x with StableZoom)
Min object distance 100 mm (Wide end), 1200 mm (Tele end)
Horizontal viewing angle 58.1°(wide end) ~ 2.3°(tele end)
Image S/N 50 dB (Weight On)
High Sensitivity mode On/Off Off
Recommended illumination 100 lx to 100,000 lx
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Wide Dynamic Range Mode On/Off
Shutter speed 1/1 sec to 1/10000 sec (22 steps)
Backlight compensation On/Off Off
Image Stabilizer On/Off/Hold Off
ICR On/Off Off
Noise Reduction On/Off
Defog On/Off (low, mid, high)
Focus Length 15~100mm
Horizontal FOV 54.2°~8.8°
