GPS Location Calculation Series

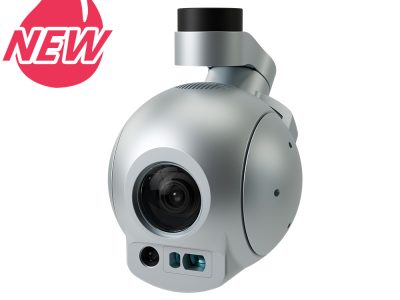

Target-coordinate gimbals do more than show an object in frame: they output its position on the ground. That turns live video into an actionable result — a point on a map you can hand to a team.
How coordinates are computed
The estimate builds on data already available onboard: the aircraft's position and altitude, the gimbal angles, the camera pointing direction, and — when present — the range to the target. From these the gimbal estimates the object's ground position. Accuracy depends on the quality of those inputs and on distance: the farther the target, the larger the error.
Where it is used
- Search operations: hand the team coordinates of a found object.
- Infrastructure inspection: tie a defect to a specific tower or span.
- Perimeter security: mark where an event happened for follow-up.
- Mapping: georeference photos and video to the terrain.
What to compare
Check which inputs the gimbal uses, whether it has a laser rangefinder, and how the model handles terrain. Verify the output format and compatibility with your ground station, plus the satellite systems and installation quality of the GNSS module.
CSKYUAV supplies coordinate-computing gimbals with OEM/ODM support. Navigation modules are in https://cskyuav.com/product-category/fpv-gps/, aircraft in https://cskyuav.com/product-category/fpv-drones/.
Frequently asked questions
How accurate are the coordinates?
Accuracy depends on distance, imaging quality and source data. The farther the target, the larger the error; for critical tasks verify from the ground.
Is a rangefinder required?
It markedly improves accuracy. Without one, distance is inferred indirectly and the error grows.
Does terrain relief get accounted for?
Simple systems compute from aircraft altitude and angles; advanced ones use a terrain model. Confirm for your model.
Can coordinates be obtained at night?
Yes, if the gimbal can see the target — usually a thermal core or illumination is needed.
Where are coordinates delivered?
Typically to the ground-station screen or as a separate data stream. Format and integration vary by model.
Does wind affect accuracy?
Indirectly: in strong turbulence the gimbal angles and stabilization suffer, and so does the estimate.
