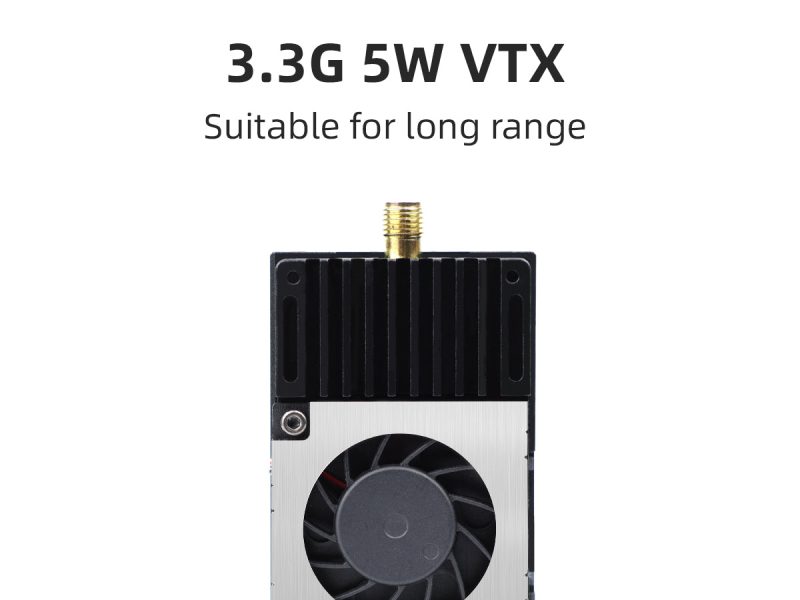

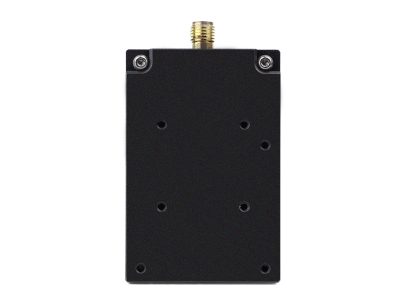

3.3G 5W High-Power SMA VTX Adjustable Power Long Range For FPV Drone

Advantages: • 5W high power output ensures strong signal penetration, ideal for long-range and ultra-long-distance flights. • 4 adjustable power levels: PIT/300mW/1W/3W/5W, with a maximum power of up to 5W.…

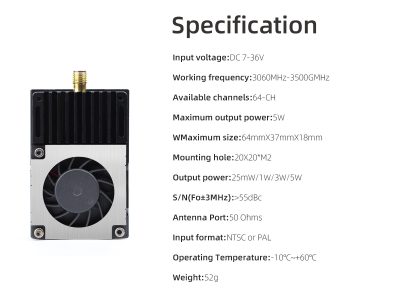

Specifications

Advantages: • 5W high power output ensures strong signal penetration, ideal for long-range and ultra-long-distance flights. • 4 adjustable power levels: PIT/300mW/1W/3W/5W, with a maximum power of up to 5W. • CNC-machined unibody upper and lower shell structure, combined with a cooling fan, provides powerful heat dissipation for stable performance. • Dual-function buttons for simpler parameter adjustment, paired with 2 sets of LED indicators for clear display of power/frequency. • Supports IRC Tramp protocol for OSD parameter adjustment. • Wide voltage input support for 2-8S (DC 7-36V). • Compatible with 20×20 M2 mounting hole pattern. Function Description: • IRC Tramp Power Levels: “PIT/300mW/1W/3W/5W” • Long press the Channel Select button for 1 second to cycle through CH 1-8. • Long press the Power Select button for 1 second to cycle through power levels: 300mW/1W/3W/5W. • Long press the Power Select button for over 2 seconds to switch between entering and exiting PIT MODE. • Please comply with local regulations when using this product. Ensure the antenna is installed before use. Product Name: 3.3G 5W Video Transmitter Input Voltage: DC 7-36V Operating Frequency: 3060MHz-3500MHz Available Channels: 64-CH Max Output Power: 5W Max Dimensions (LWH): 48.5mm 35mm 21.5mm Mounting Hole Pattern: 20X20mm * M2 Frequency Chart (MHz): Channel FR1 FR2 FR3 FR4 FR5 FR6 FR7 FR8 CH1 3060 3083 3215 3170 3320 3310 3330 3360 CH2 3080 3114 3235 3190 3345 3330 3350 3380 CH3 3100 3145 3255 3210 3370 3355 3370 3400 CH4 3120 3176 3275 3230 3390 3380 3390 3420 CH5 3140 3207 3295 3250 3420 3405 3410 3440 CH6 3160 3238 3315 3270 3445 3430 3430 3460 CH7 3180 3269 3335 3290 3470 3455 3450 3480 CH8 3200 3300 3335 3310 3495 3480 3470 3500 Output Power:”PIT/300mW /1W /3W/5W” Signal-to-Noise Ratio S/N (Fo±3MHz): >55dBc Antenna Port Impedance: 50 Ohms Input Signal Format: NTSC or PAL Operating Temperature: -10℃ ~ +60℃ Weight: 52g Package List: 1 x 3.3G 5W Video Transmitter 1 x SMA 100mm Adapter 1 x GH1.25 6Pin 100mm Single-Ended Cable 1 x SH1.0 4Pin to GH1.25 6Pin 60mm Double-Ended Cable
