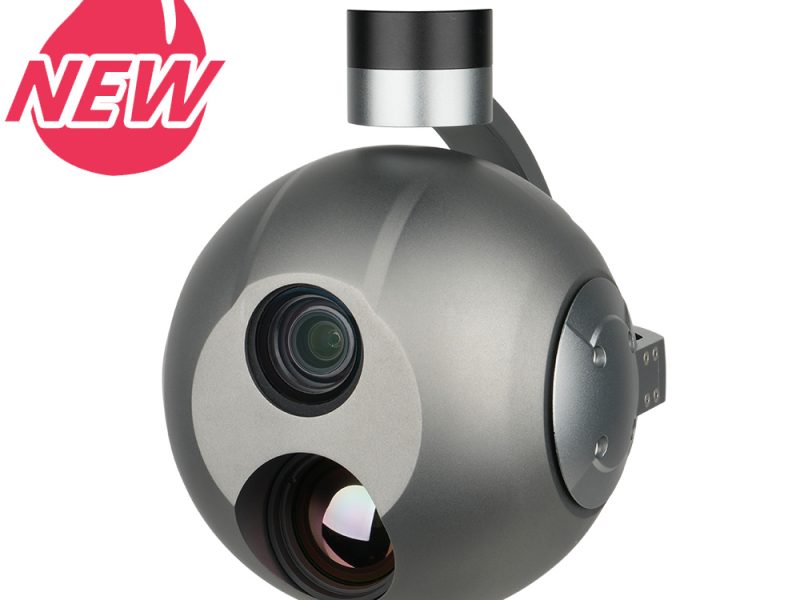

A20KT-35
AI SeriesHardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current1000~1500mA @ 16V Power consumptionAverage 16W, Max 24WWorking environment temp.-20℃ ~ +50℃Outputmicro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps…
Specifications
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Power consumption | Average 16W, Max 24W |
| Local-storage | TF card (Up to 256 GHz,class 10, FAT32) |
| Picture storage format in TF card | JPG(4K:3840*2160) |
| Video storage format in TF card | MP4(4K 30fps) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Imager Sensor | SONY 1/2.5" "Exmor R" CMOS |
| Total pixel | 8.51MP |
| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Focus | Auto/Manual |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec |
| Back light compensation | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |
| Focus Length | 35mm |
| Horizontal FOV | 12.5° |
| Vertical FOV | 10.0° |
| Diagonal FOV | 16.0° |
| Detective Distance (Man | 1.8x0.5m): 1458 meters |
| Recognize Distance (Man | 1.8x0.5m): 365 meters |
| Verified Distance (Man | 1.8x0.5m): 182 meters |
Hardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current1000~1500mA @ 16V Power consumptionAverage 16W, Max 24WWorking environment temp.-20℃ ~ +50℃Outputmicro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps H264/H265) Local-storageTF card (Up to 256G,class 10, FAT32)Picture storage format in TF cardJPG(4K:3840*2160)Video storage format in TF cardMP4(4K 30fps
