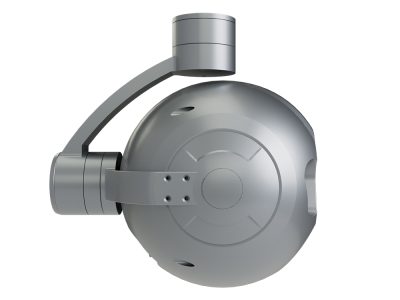

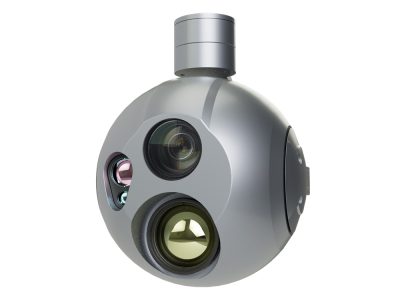

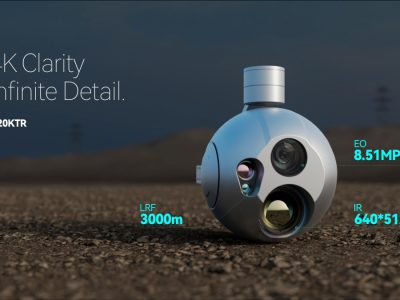

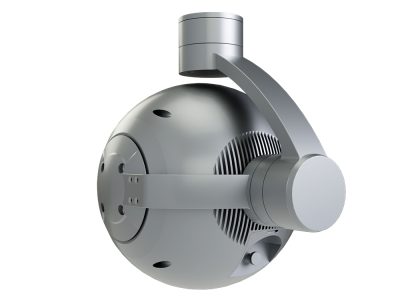

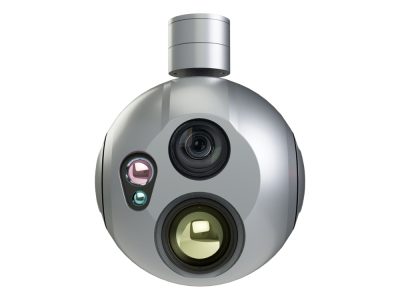

A20KTR
AI SeriesHardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current950~1500mA @ 16V Power consumptionAverage 15.2W, Max 24WWorking environment temp.-20℃ ~ +50℃Outputmicro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps…
Specifications
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 950~1500mA @ 16V |
| Power consumption | Average 15.2W, Max 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps H264/H265) |
| Local-storage | SD card (Up to 256 GHz,class 10, FAT32) |
| Picture storage format in TF card | JPG(4K:3840*2160) |
| Video storage format in TF card | MP4(4K 30fps) |
| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Controllable Range | Pitch/Tilt: -45°～110°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |

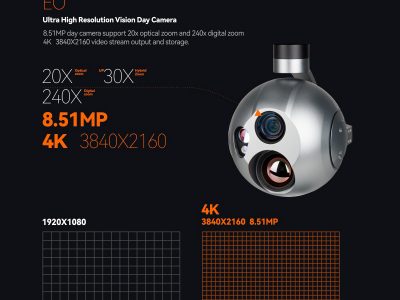

| Imager Sensor | SONY 1/2.5" "Exmor R" CMOS |
| Total pixel | 8.51MP |

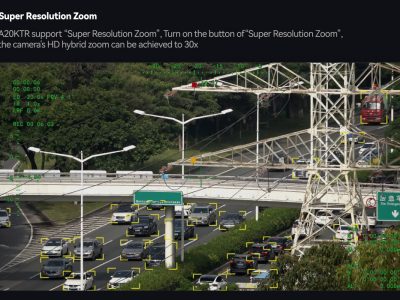

| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Focus | Auto/Manual |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |

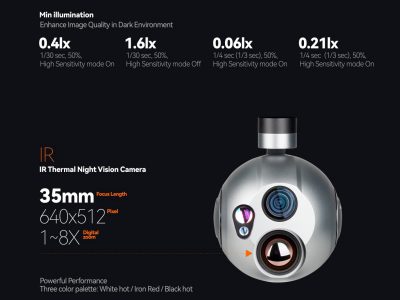

| Focus Length | 35mm |
Hardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current950~1500mA @ 16V Power consumptionAverage 15.2W, Max 24WWorking environment temp.-20℃ ~ +50℃Outputmicro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps H264/H265) Local-storageSD card (Up to 256G,class 10, FAT32)Picture storage format in TF cardJPG(4K:3840*2160)Video storage format in TF cardM
Frequently Asked Questions
Is this product in stock?
Yes — this item ships from our Shenzhen warehouse within 1–3 business days. Stock levels are updated regularly; contact our sales team for current availability and lead time on larger quantities.
Do you support OEM / ODM and custom branding?
Yes. As a factory-direct supplier we accept OEM/ODM orders including custom branding, packaging and firmware/parameter customization. Share your requirement with our sales team to get a tailored quote.
How do you ship, and what is the delivery time?
We ship worldwide via DHL, FedEx, UPS or air/sea freight. Small parcels usually arrive in 5–10 working days; bulk orders can be shipped by sea. Tracking is provided once the parcel leaves our warehouse.
Do you offer wholesale pricing and MOQ?
Yes, as a factory-direct supplier we offer wholesale pricing on this product. The minimum order quantity depends on the item and configuration — send your quantity and destination to our sales team and we will reply with an exact quote.
Do you provide warranty and after-sales support?
Yes, we provide technical support and after-sales service for our products. For the warranty terms specific to this product, contact our team and we will confirm the coverage period and the repair/replacement process.
Can you confirm compatibility before I order?
Yes. Before dispatch we can confirm that the product matches your radio, flight controller, goggles, frame or other equipment. Send us your build list and our engineers will verify compatibility before you place the order.
