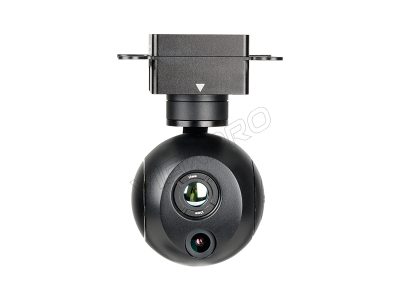

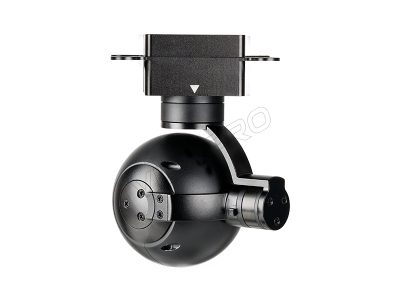

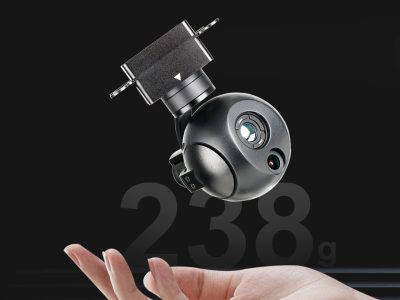

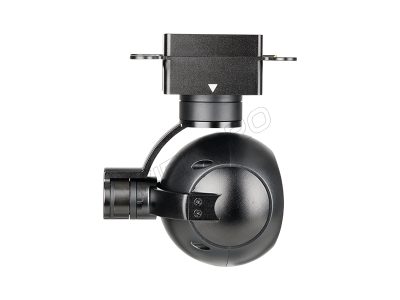

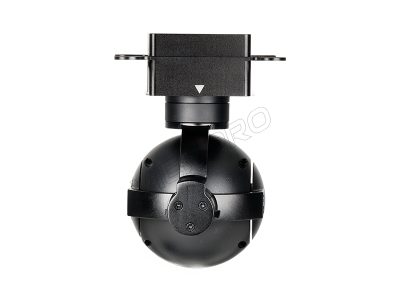

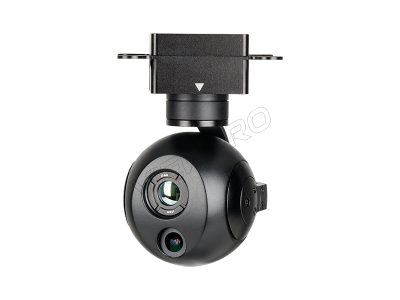

A613
AI SeriesHardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Dynamic current450~750mA @ 16VPower consumptionAverage 7.2W, Max 12WWorking environment temp.-20℃ ~ +50℃OutputIP (RTSP/UDP 720p/1080p 30fps H264/H265)Local-storageSD card (Up to 256G,class 10, FAT32)Photo storage formatJPG(1920*1080)Video…
Specifications
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Dynamic current | 450~750mA @ 16V |
| Power consumption | Average 7.2W, Max 12W |
| Local-storage | SD card (Up to 256 GHz,class 10, FAT32) |
| Photo storage format | JPG(1920*1080) |
| Control method | TTL or S.BUS (choose one of them, and TTL by default), and TCP/UDP |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Imager Sensor | 1/2.9" CMOS Sensor |
| Image pixel | 2MP |
| Picture quality | Full HD 1080 (1920*1080) |
| Lens | Focus Length 6mm |
| Digital zoom | 1x~12x |
| Focus Length | 13mm |
| Aperture | F1.2 |
| Horizontal FOV | 33° |
| Vertical FOV | 26° |
| Detective Distance (Man | 1.8x0.5m): 542 meters |
| Recognize Distance (Man | 1.8x0.5m): 135 meters |
| Verified Distance (Man | 1.8x0.5m): 68 meters |
| Detective Distance (Car | 4.2x1.8m): 1661 meters |
| Recognize Distance (Car | 4.2x1.8m): 415 meters |
| Verified Distance (Car | 4.2x1.8m): 208 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |

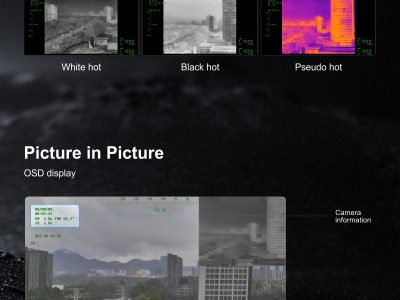

| Color palette | White,black,pseudo color |
Hardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Dynamic current450~750mA @ 16VPower consumptionAverage 7.2W, Max 12WWorking environment temp.-20℃ ~ +50℃OutputIP (RTSP/UDP 720p/1080p 30fps H264/H265)Local-storageSD card (Up to 256G,class 10, FAT32)Photo storage formatJPG(1920*1080)Video storage formatMP4 (1080P 30fps)Control methodTTL or S.BUS (choose one of them, and TTL by default), and TCP/UDPGimbal SpecMec
