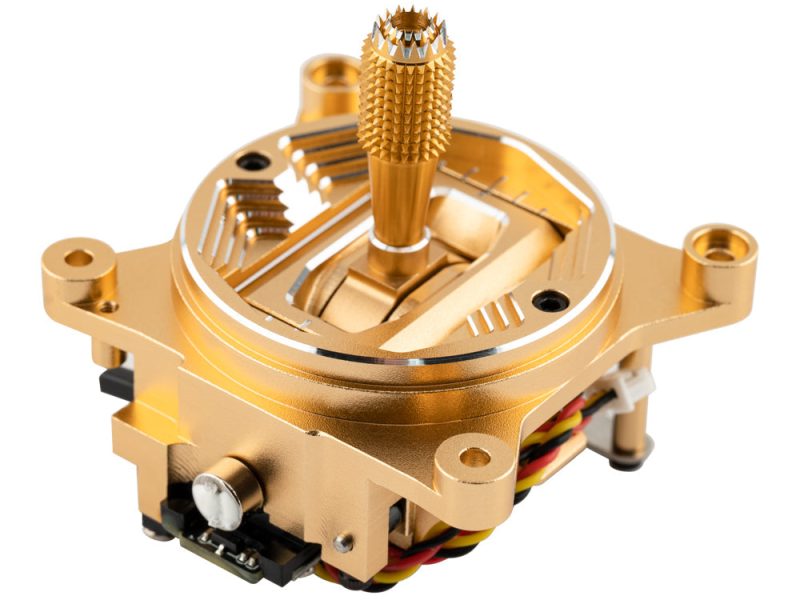

AG01 MINI CNC Hall Gimbals Set New Colors

Other Drone Accessories

Bring some extra vitality to your flight with the AG01 MINI CNC Hall Gimbals Sets in new colors! With the new color version, you'll stand out in style while enjoying…

Specifications

Red
SKU: HP0157.AG01MINI-SET-RED
$109.99
Gold
SKU: HP0157.AG01MINI-SET-GLD
Blue
SKU: HP0157.AG01MINI-SET-BLU
Accessories
AG01 gimbals
Get a Quote

Bring some extra vitality to your flight with the AG01 MINI CNC Hall Gimbals Sets in new colors! With the new color version, you’ll stand out in style while enjoying the power and precision of the AG01 Mini Gimbals. Get ready for your TX12 MKII & Zorro Radio with the new colors AG01 Mini Gimbal! Features Made with CNC processed aviation grade aluminum. Sticky360 Mini Gimbal Sticks as standard. Non contact hall sensors for accurate control inputs and precise centering. Quad precision bearings for unparalleled stick feel. Adjustable vertical travel angle (Min. 38°, Max. 54°). Custom designed for RadioMaster Zorro & TX12 . Specifications Name: AG01 Mini CNC Hall Gimbal Colors: Red, Gold, Blue Sensor type: Hall Sensor Working voltage: DC 3.3V Linearity: Real-time (No delay) Adjustable vertical travel range: 38°—54° Self-centering adjustment: Yes Easy mode adjustment Adjustable tension: Yes Quad bearing: Yes Temperature range: -20°C-85°C Size: 49*42*48mm Weight: 42g(±0.3g) Installation for Zorro & TX12 The AG01 Mini gimbals are shipped as self-centering by default and compatible with the Zorro and TX12 Radios. For Zorro The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in self-centering configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal. For TX12 One gimbal must be set as throttle and one as self-centering before installation in the radio. 1. Use the included screw (see parts bag) to hold down the centering lever and set the gimbal as a throttle gimbal. 2. Adjust the throttle tension bar until the desired tension is achieved. Size Package 2 * AG01 Mini Hall CNC Gimbal 2 * Hex tool 8 * Installation screw 2 * Spare tension spring 2 * Throttle tension screw

View All Other Drone Accessories
FPV Controller FPV Motors FPV Drones FPV VTX/VRX FPV Frame Kits

Frequently Asked Questions

Is this product in stock?
Yes — this item ships from our Shenzhen warehouse within 1–3 business days. Stock levels are updated regularly; contact our sales team for current availability and lead time on larger quantities.
Do you support OEM / ODM and custom branding?
Yes. As a factory-direct supplier we accept OEM/ODM orders including custom branding, packaging and firmware/parameter customization. Share your requirement with our sales team to get a tailored quote.
How do you ship, and what is the delivery time?
We ship worldwide via DHL, FedEx, UPS or air/sea freight. Small parcels usually arrive in 5–10 working days; bulk orders can be shipped by sea. Tracking is provided once the parcel leaves our warehouse.
Do you offer wholesale pricing and MOQ?
Yes, as a factory-direct supplier we offer wholesale pricing on this product. The minimum order quantity depends on the item and configuration — send your quantity and destination to our sales team and we will reply with an exact quote.
Do you provide warranty and after-sales support?
Yes, we provide technical support and after-sales service for our products. For the warranty terms specific to this product, contact our team and we will confirm the coverage period and the repair/replacement process.
Can you confirm compatibility before I order?
Yes. Before dispatch we can confirm that the product matches your radio, flight controller, goggles, frame or other equipment. Send us your build list and our engineers will verify compatibility before you place the order.
