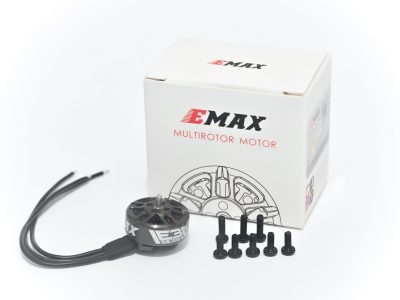

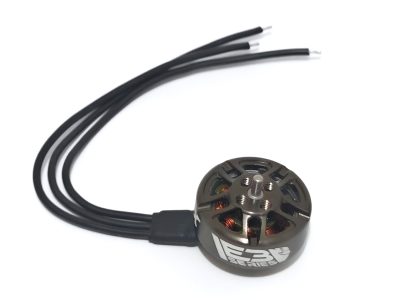

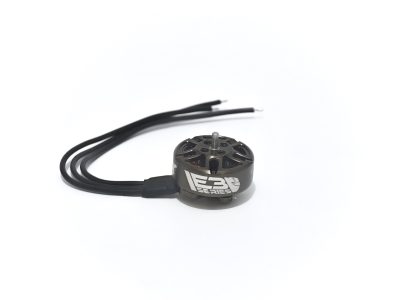

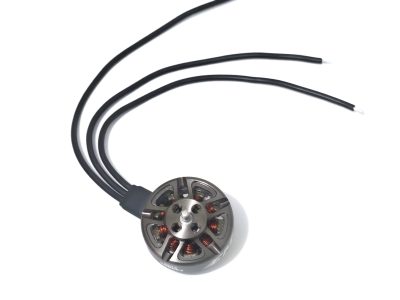

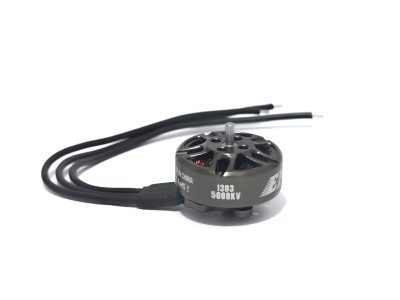

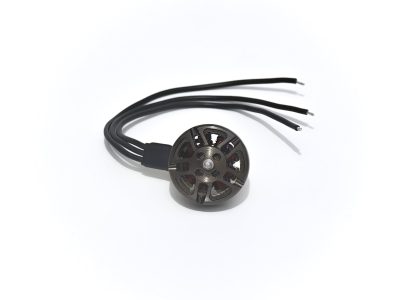

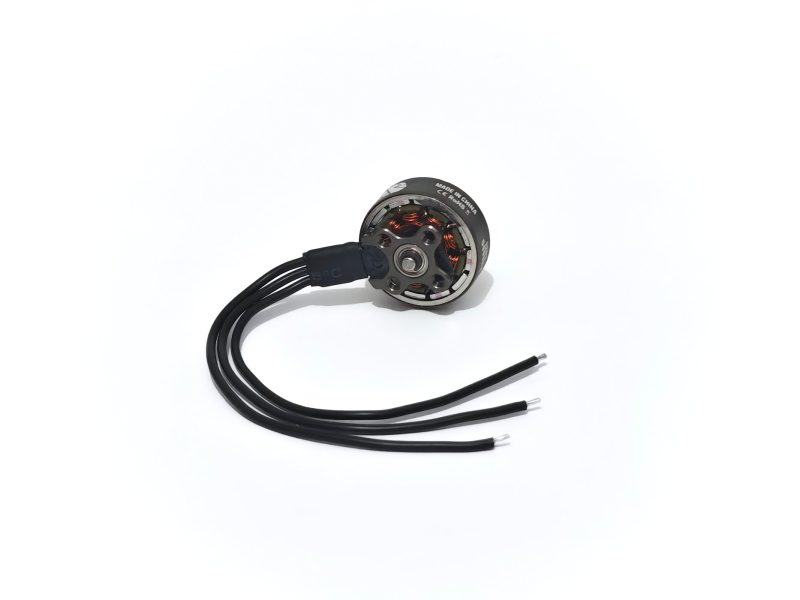

EMAX E3 1303 5000KV 8000KV 11000KV brushless motor

Summary EMAX believes cutting-edge technology should be available to every pilot. The E3 Series features optimized materials and manufacturing, delivering elite-level durability, power, and efficiency without the premium cost, enabling…

Specifications

Summary EMAX believes cutting-edge technology should be available to every pilot. The E3 Series features optimized materials and manufacturing, delivering elite-level durability, power, and efficiency without the premium cost, enabling pilots of all skill levels. The E3 Series isn’t just another motor—it’s a statement in high-performance engineering and durability. Built to withstand extreme conditions while maintaining peak performance, it sets a new benchmark in reliability and power for cinematic, freestyle, and indoor micro FPV. E3 is built to last. Features RUGGED STEEL SHAFT Resists bending, avoids vibration and rotor-scraping after hard crashes. AL 7075 ANODIZED HOUSING Resists impact deformation, delivers light-weight build, only 6.6g with wire. ONE-PIECE OUTER ROTOR Locks magnets firmly, prevents jitter and power loss upon impact. N52SH ARC MAGNETS Retains magnetic strength, avoids high-temp torque drop-off. SINGLE-STRAND WINDING Lowers internal resistance, reduces excessive heat under heavy load. NSK PRECISION BEARING Reduces high-speed noise and vibration, prolongs service life. Specifications Motor Size: φ17.3 × 15.3mm Stator Structure: 9N12P Stator Height: 3mm Bearing Shaft: φ2mm Prop Shaft: φ1.5mm Lead Wire: 24#AWG, 80mm silicone wire Weight (with wire): 6.6g Mounting Pattern: 9×9mm, M2 Housing: AL 7075 Anodized Magnet: N52SH Arc Magnet Bearing: NSK Precision Bearing Winding: Single-strand Winding Package Includes 1 × E3-1303 Brushless Motor 5 × M2*5mm Screws 3 × M2*6.5mm Screws
