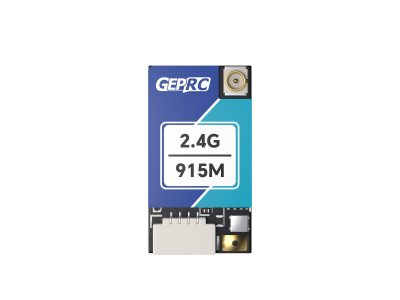

GEPRC ELRS Nano DUAL 2.4G C3 True Diversity Receiver

Summary GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range…

Specifications

Summary GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price. The ELRS Nano DUAL 2.4G True Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes. Feature The size is small, weighing only 1.1g WIFI Upgrade firmware ELRS open source project, remote control Maximum refresh rate of 1000Hz Two independent RF receiving links, true diversity receiver The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance SX1281,ESP32-C3 High-performance Chip Specifications Model: GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver Size: 17*13mm Weight: 1.1g (RX only) Chips:ESP32-C3，SX1281x2 Crystal Oscillator: TCXO Frequency Band: 2.4GHz ISM Refresh Rate: 25Hz-1000Hz Input Voltage: 5V Antenna Connector: ipex1 Indicator Light: RGB light TLM Power: 10mW Firmware: GEPRC Nano True Diversity 2.4GHz RX Includes 1 x ELRS Nano DUAL 2.4G True Diversity Receiver 2 x 2.4G T-Antennas(ipex1 80mm) 1 x Receiver silicone cable(SH1.0 4pin 100mm) 1 x Heat shrink tube 1 x User manual
