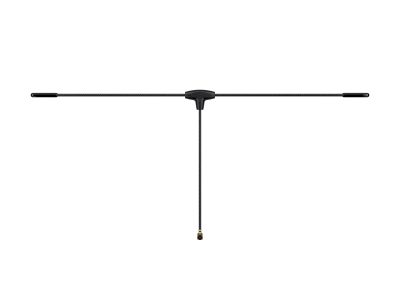

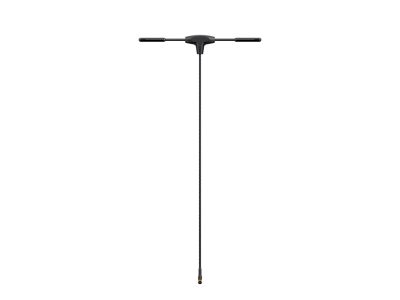

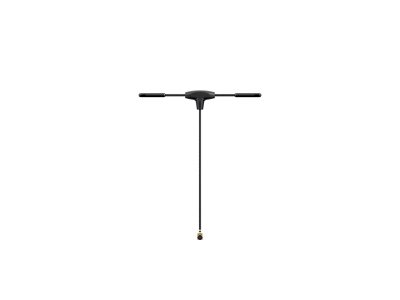

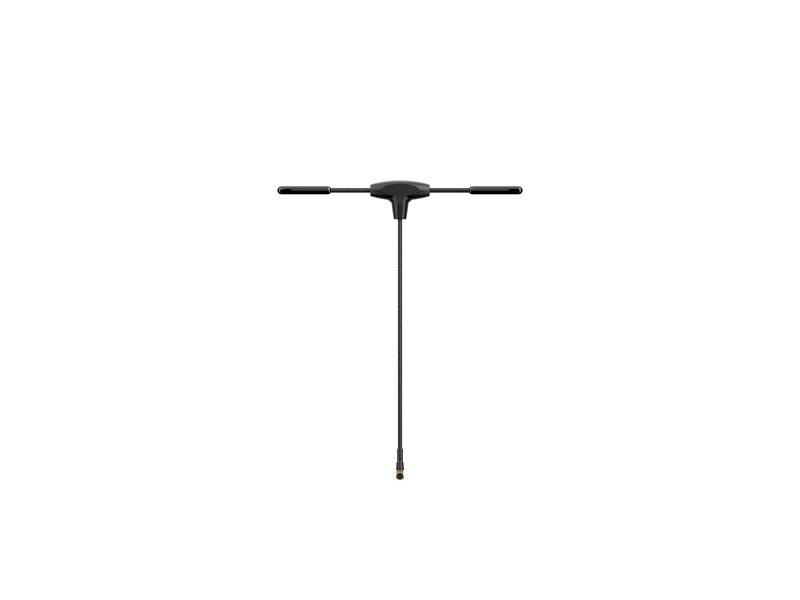

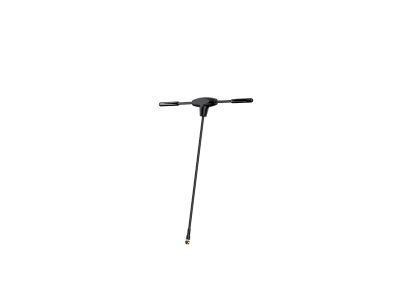

GEPRC IPEX T Antenna(5pcs)
FPV AntennaFeature High-quality IPEX4 connector for better efficiency and lower impedance Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards Stronger signal compared to similar models…
Specifications
| $990 | |
| Connector: IPEX1, IPEX4 | |
| Frequency: 915MHz, 2.4GHz | |
| Length: 55mm, 100mm |
Feature High-quality IPEX4 connector for better efficiency and lower impedance Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards Stronger signal compared to similar models Specifications 2.4GHz Version Model: GEPRC IPEX4 2.4G T Antenna (Upgraded) Center Frequency: 2.4GHz Bandwidth: 2400MHz – 2500MHz Polarization: Omnidirectional Average Gain: 3.23dBi Average VSWR: 1.23 RF Cable: Steel wire+PCB Cable Length: 55/100mm Connector:IPEX1/IPEX4 915MHz Version Model: GEPRC IPEX1 915MHz T Antenna (Upgraded) Center Frequency: 915MHz Bandwidth: 900MHZ-930MHZ Polarization: Omnidirectional Average Gain: 3.4dBi Average VSWR: 1.25 RF Cable: Steel wire + PCB Cable Length: 55mm Connector:IPEX1
