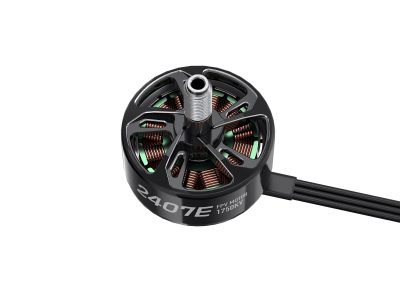

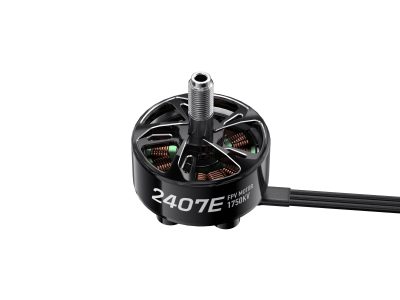

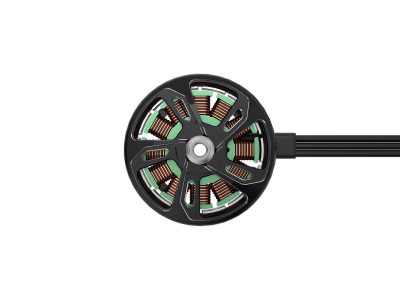

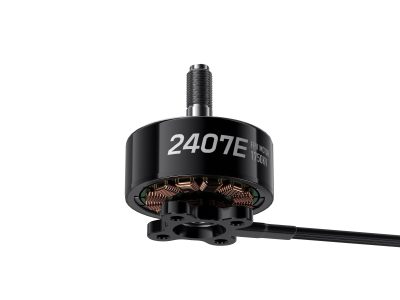

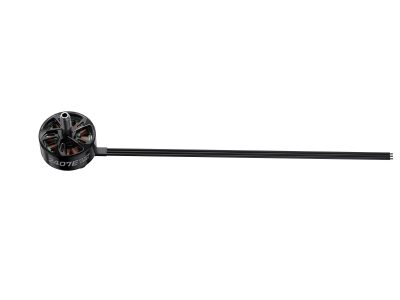

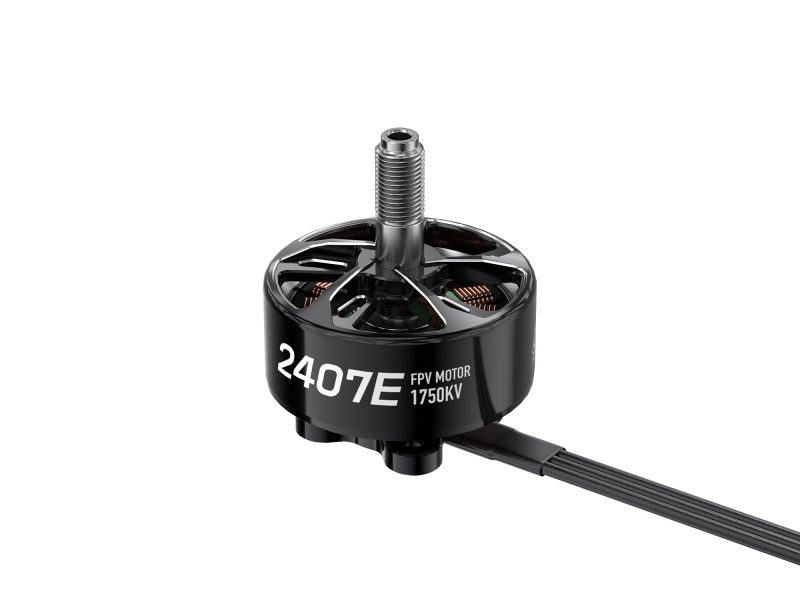

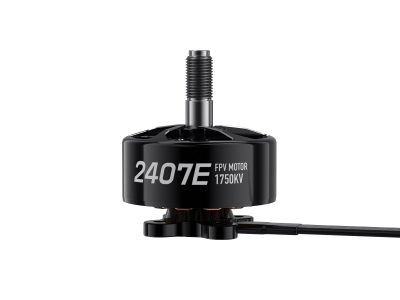

GEPRC SPEEDX2 2407E 1750KV Motor

Summary The SPEEDX2 2407E motor is tailored for quick responsiveness in advanced flight applications, featuring an optimized rotor and stator gap. Its all-black design and extensive cut-out structure enhance heat…

Specifications

Summary The SPEEDX2 2407E motor is tailored for quick responsiveness in advanced flight applications, featuring an optimized rotor and stator gap. Its all-black design and extensive cut-out structure enhance heat dissipation. Constructed from aviation-grade aluminum alloy using precision CNC molding, this motor is lightweight and durable. Feature Reduced rotor-stator gap ensures rapid response for seamless freestyle flying. The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance. Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design. Specifications Model: SPEEDX2 2407E Motor KV: 1750 Max Watt: 972.7W Peak Current: 49A Interphase Resistance: 38mΩ Propeller: 5-6inch Magnet: N52H Bearing: NMB/NSK Stator Configuration: 12N14P Dimension: ф34*30mm Shaft Diameter：ф5mm Shaft Length：13.5mm Mounting Hole Size：16*16mm Wire Specification: 20AWG/150mm Compatible ESC: 60A/6S Input Voltage：6S Winding: Single-strand copper winding Color: Black Weight: 39g (including wire) Compatible Models: Suitable for 5inch-6inch racing FPV quads
