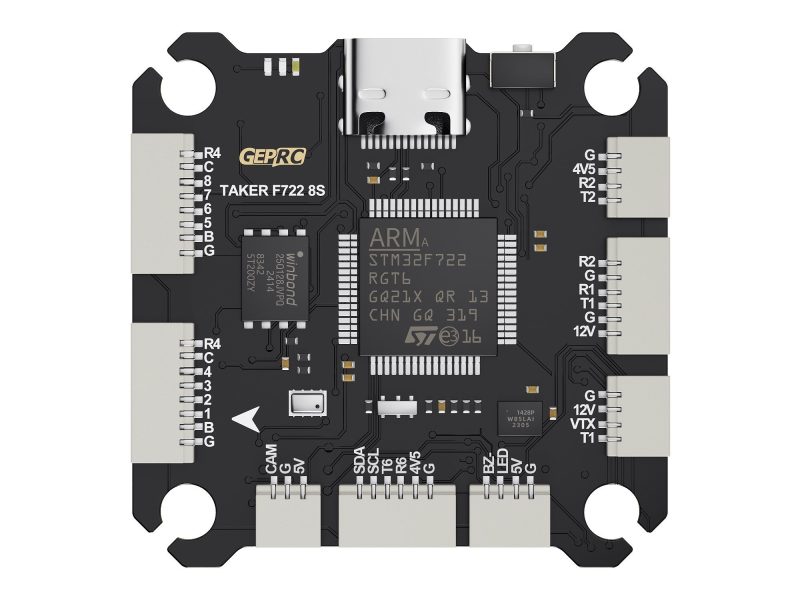

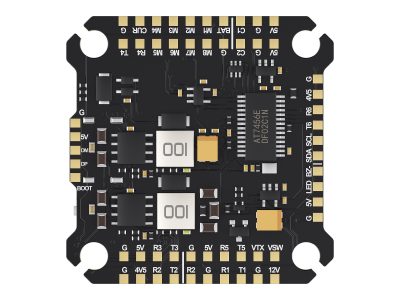

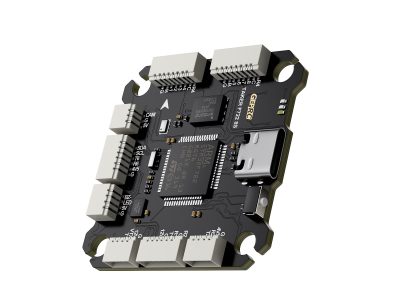

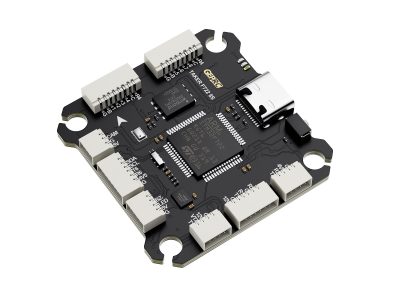

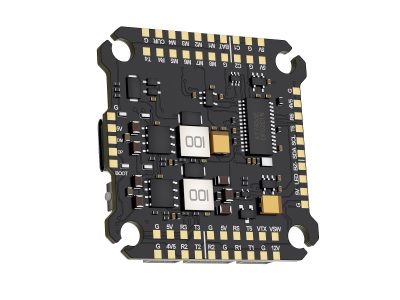

GEPRC TAKER F722 8S Flight Controller

Feature Use mainstream STM32F722 chip Equipped with the latest 42688-P gyroscope 16M Blackbox storage 5V@3A+12V@3A dual independent BEC Integrated LC filter Upgrade type-C USB interface Directly plugged into the DJI…

Specifications

Feature Use mainstream STM32F722 chip Equipped with the latest 42688-P gyroscope 16M Blackbox storage 5V@3A+12V@3A dual independent BEC Integrated LC filter Upgrade type-C USB interface Directly plugged into the DJI Air Unit Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably Integrated barometer Supports 8S voltage Support direct insertion of 8 motors Specifications FC Model: TAKER F722 8S Flight Controller MCU: STM32F722 IMU: ICM42688-P(SPI) Air Unit Connection: Direct plugging into DJI Air Unit Black Box: 16M onboard Barometer: Support Motor outputs: M1-M8 USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,12V@3A dual BEC Firmware Target: GEPRC_TAKER_F722_8S Size: 38.5×38.5mm Mounting: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle Input Voltage: 3-8S LiPo UART: 6 UARTs Power Filter: Integrated LC filter Weight：8.3g Includes 1 x TAKER F722 8S Flight Controller 1 x DJI connection cable(SH1.0 6pin 100mm) 2 x FC adapter cable(SH1.0 8pin 30mm) 4 x Nylon nuts 4 x Silicone grommets 2 x Receiver silicone cable(SH1.0 4pin 150mm) 1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
