H4TS-19

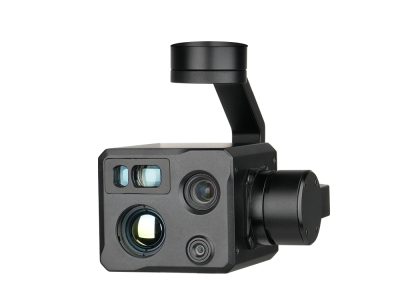

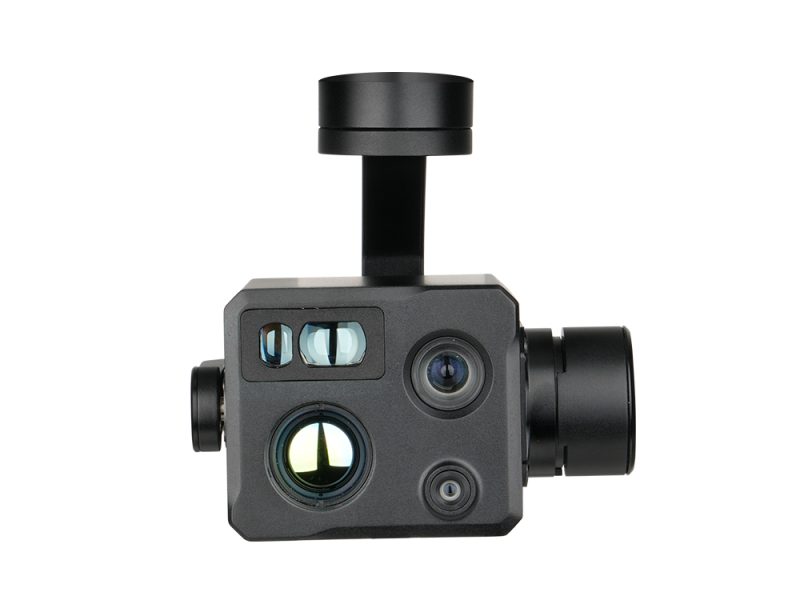

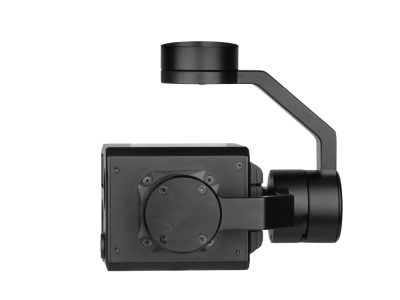

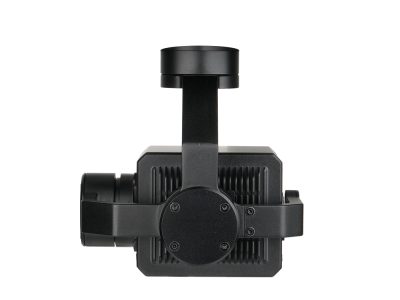

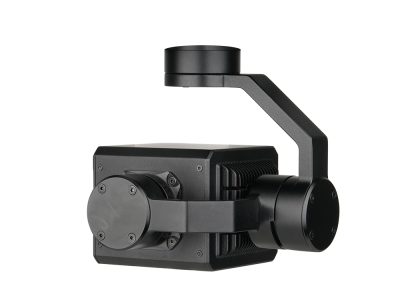

AI SeriesThe H4TS-19 is a mini 8K Quad-sensor AI tracking camera. With a thermal imager of 640*512, 19mm focal length, and 12μm; its image sensor is a 1/2-inch CMOS with 48…
Specifications
| N.W. | 399 GHz |
|---|---|
| Input Voltage | 14.8V~25.2V |
| Power consumption | Average 12W, Max 32W |
| IP rate | IP4X |
| Storage | TF card (Up to 256 GHz,class 10, FAT32) |
| Picture in TF Card | JPG(EO supports 4K/48M, selectable by mode; IR supports 640x512) |
| Video in TF Card | MP4(EO supports 4K/1080P/720P; IR supports 640x512) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Imager Sensor | 1/2" CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 4.49mm |
| Equivalent focal length | 24.29mm |
| Aperture | F2.8 |
| Min illumination | Color 0.1 lux |
| Optical distortion | 2.50% |
| Focus Length | 19mm |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |
| Detective Distance (Man | 1.8x0.5m): 792 meters |
| Recognize Distance (Man | 1.8x0.5m): 198 meters |
| Identification Distance (Man | 1.8x0.5m): 99 meters |
| Detective Distance (Car | 4.2x1.8m): 2428 meters |
The H4TS-19 is a mini 8K Quad-sensor AI tracking camera. With a thermal imager of 640*512, 19mm focal length, and 12μm; its image sensor is a 1/2-inch CMOS with 48 megapixels; and its LRF can reach 1200 meters. The entire machine weighs only 399g, making it extremely portable.
