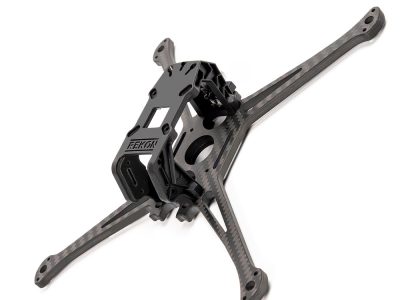

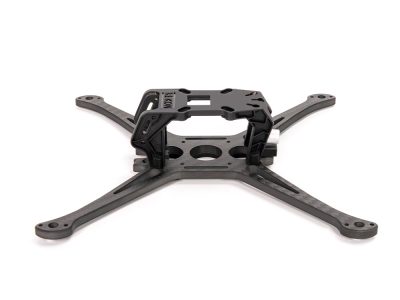

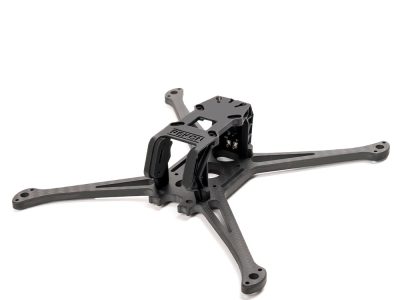

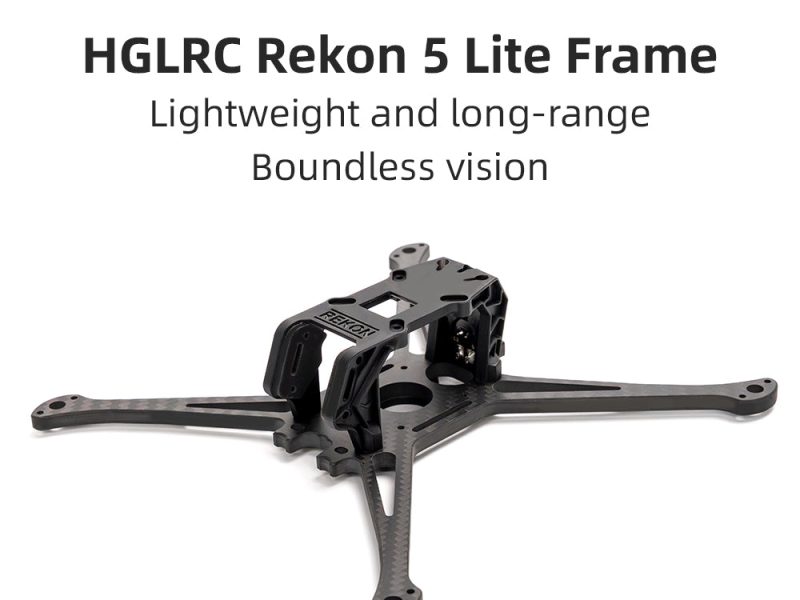

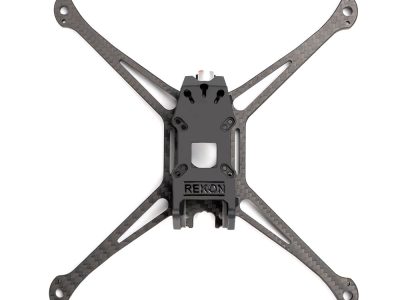

HGLRC Rekon 5 Lite Frame

Product Specifications Frame Model: Rekon 5 Lite Frame Wheelbase: 206mm Mounting Height: 26mm Flight Controller Mounting Holes: 25.5 x 25.5 x M2 VTX Mounting Holes: 20 x 20 x M2…

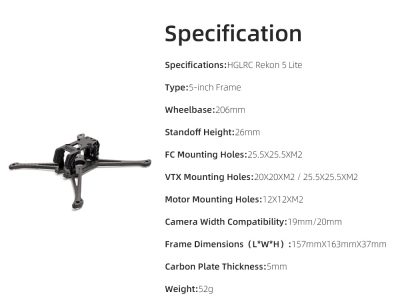

Specifications

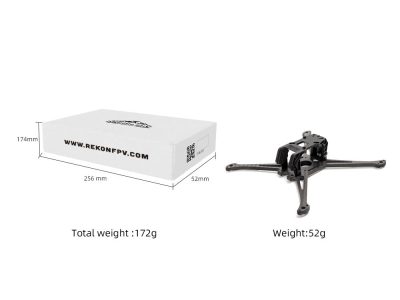

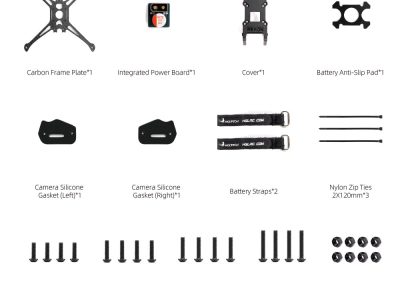

Product Specifications Frame Model: Rekon 5 Lite Frame Wheelbase: 206mm Mounting Height: 26mm Flight Controller Mounting Holes: 25.5 x 25.5 x M2 VTX Mounting Holes: 20 x 20 x M2 / 25.5 x 25.5 x M2 Motor Mounting Holes: 12 x 12 x M2 Camera Width: 19mm / 20mm Frame Dimensions (L x W x H): 157mm x 163mm x 37mm Carbon Thickness: 5mm Frame Weight: 52g Recommended Flight Equipment: (The following equipment is not included in the frame kit ) AIO: HGLRC SPECTER F722 40A AIO Motor: HGLRC SPECTER 1804 3500KV GPS: HGLRC M100 mini VTX : DJI O4 Air Unit Pro Battery: HGLRC LIHV 4S 850mAh Propellers: HQ Prop T5 x2 x3 Shipping List: Frame Carbon Plate x 1 Canopy x 1 Battery Anti-Slip Pad x 1 Camera Silicone Gasket L x 1 Camera Silicone Gasket R x 1 Integrated Power Board x 1 Battery Ties x 2 Round Hexagon Socket M2*5 x 4 Round Hexagon Socket M2*8 x 4 Round Hexagon Socket M2*14 x 4 Round Hexagon Socket M2*18 x 4 M2 Hexagon Black Nylon Nuts x 8 Nylon Ties x 2 x 120mm x 3
