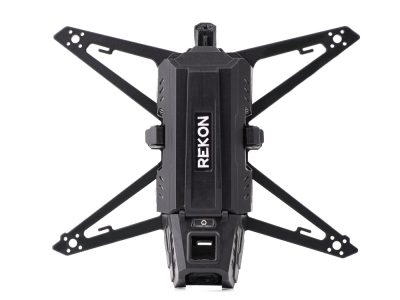

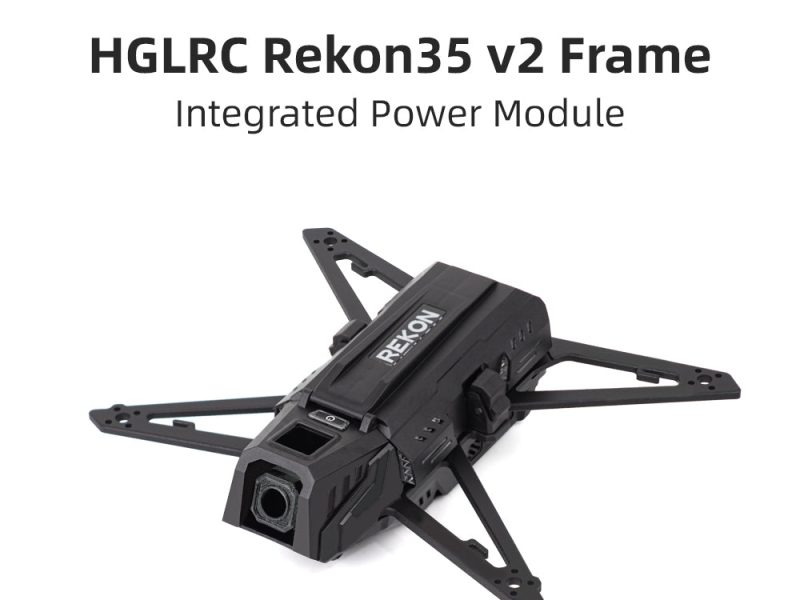

HGLRC Rekon35 V2 Frame

The Rekon35 v2 frame is constructed from high-strength carbon fiber combined with injection-molded components. It features a dedicated power button and an integrated 2S power module supporting charge/discharge functions for…

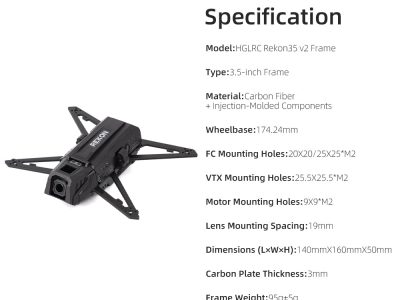

Specifications

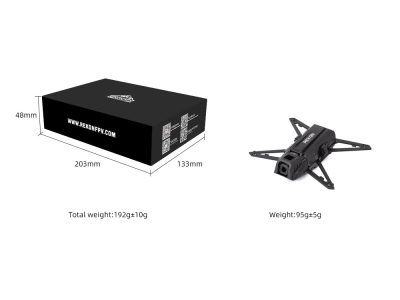

The Rekon35 v2 frame is constructed from high-strength carbon fiber combined with injection-molded components. It features a dedicated power button and an integrated 2S power module supporting charge/discharge functions for 18650 batteries, complete with LED and buzzer status indicators. The internal battery placement reduces in-flight drag. As a 3.5-inch propeller drone, it offers precise handling and confidently tackles complex flying environments. Features: * Injection-molded body components * Dedicated power button design * Integrated 2S charge/discharge power module * LED and buzzer status indicators * Compatible with multiple FC/VTX mounting hole patterns Model：Rekon35 v2 frame Material：Carbon fiber with spray coating + injection-molded parts Wheelbase：174.24mm FC Mounting Pattern：20X20*M2 VTX Mounting Pattern：25.5X25.5*M2 Motor Mounting Pattern：9X9*M2 Camera Mount Spacing：20mm Overall Dimensions (LxWxH)：140mm×160mmx50mm Carbon Plate Thickness：3mm Frame Weight：95±5g (Includes 3D printed parts, power board, and screws) Recommended Components (Not Included) FC：HGLRC H743 20A ELRS2.4G 2S V1 AIO Flight Controller Motors：SPECTER 1404-5500kv Camera：Caddx Ratel2 /DJI O4 AIR Unit Props：Gemfan 3630
