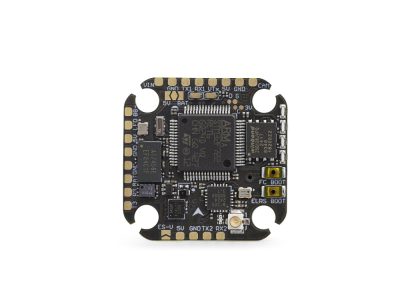

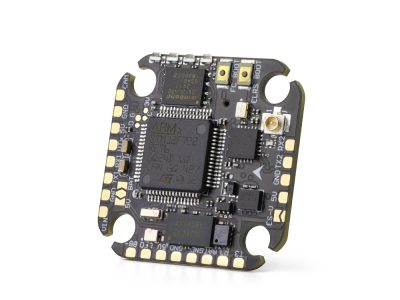

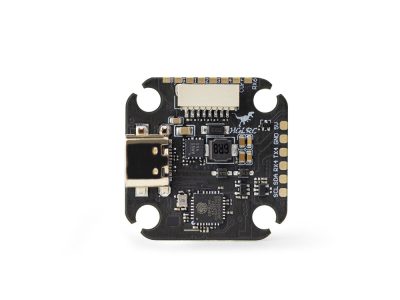

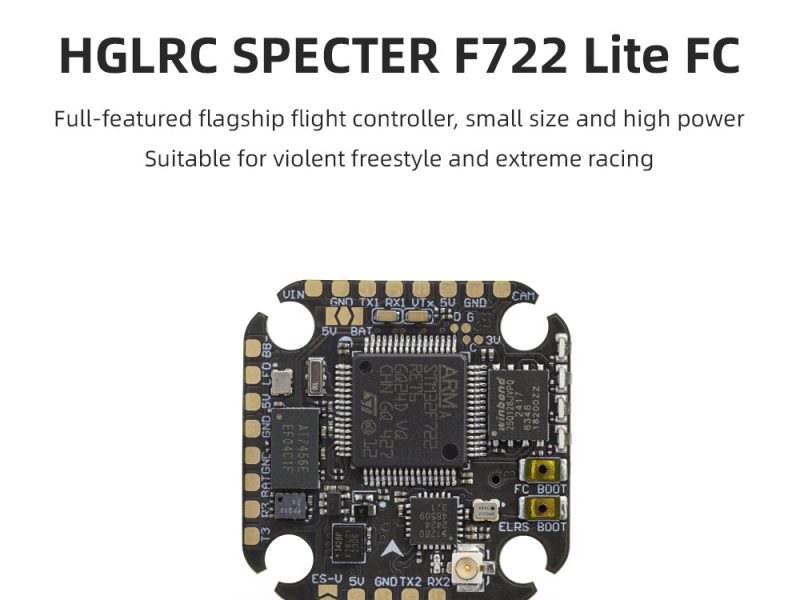

HGLRC SPECTER F722 Lite ICM42688 gyro integrated ELRS 2.4G receiver flight controller

Selling point: * Minimal integration: The flight control comes with an onboard ELRS 2.4G receiver, and an external receiver is also available. The 4g ultra-featherweight design greatly saves installation space,…

Specifications

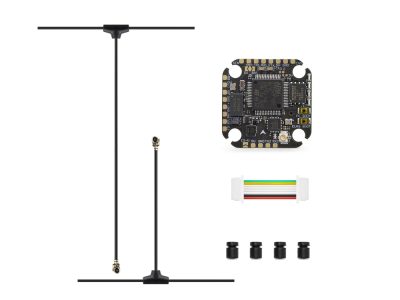

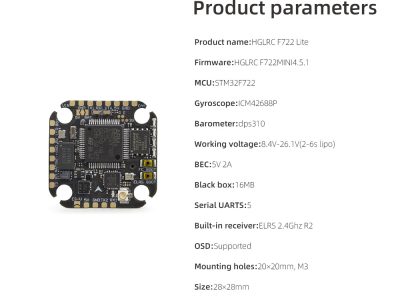

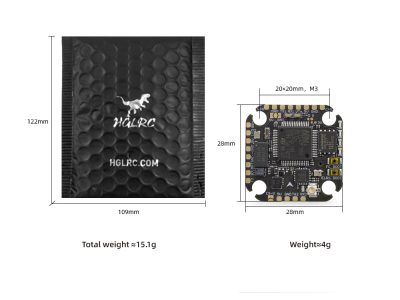

Selling point: * Minimal integration: The flight control comes with an onboard ELRS 2.4G receiver, and an external receiver is also available. The 4g ultra-featherweight design greatly saves installation space, and the small fuselage can be installed without pressure * F722 main control: double-precision floating point acceleration, millisecond-level delay processing flight instructions, and 40% increase in response speed (compared to the F4 series); support high-frequency PID refresh, suitable for violent freestyle and extreme speed racing scenes. * Full scene adaptation: wide voltage power supply 8.4V-25.2V (2-6S), compatible with light 3-inch whoop to 7-inch long-range drone, eliminating the external BEC module, and the wiring is simpler. Support 5VBAT voltage output, compatible with most analog/ HD image transmission. Flight control parameters: FC name: HGLRC F722 Lite Firmware: HGLRCF722MINI_4.5.1 MCU: STM32F722 Gyroscope: ICM42688P Barometer: dps310 Operating voltage: 8.4V-25.2V (2-6S lipo) BEC: 5V 2A Black box: 16MB Serial UARTS: 5 Built-in receiver: ELRS 2.4Ghz R2 OSD: Supported Mounting holes: 20×20mm, M3 Size: 28×28mm Weight: 4g Delivery list: 1x SPECTER F722 Lite flight controller 1x 25mm 8Pin flight control cable 1x 90mm 2.4G T-type antenna 1x 40mm 2.4G T-type antenna 4x M3*8 shock absorber
