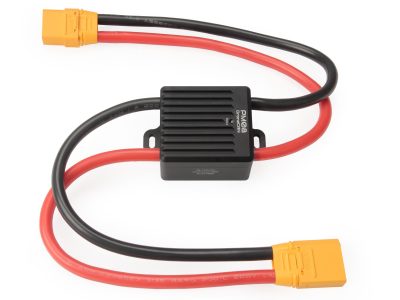

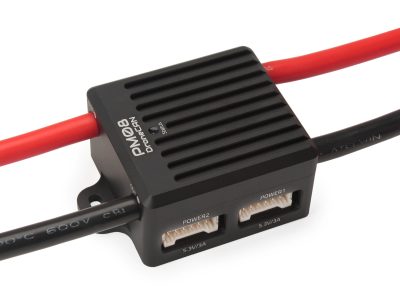

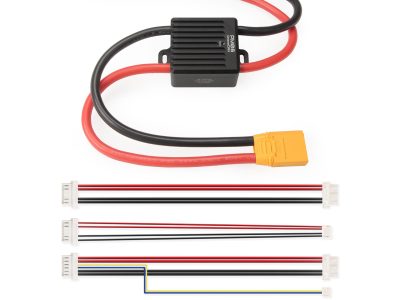

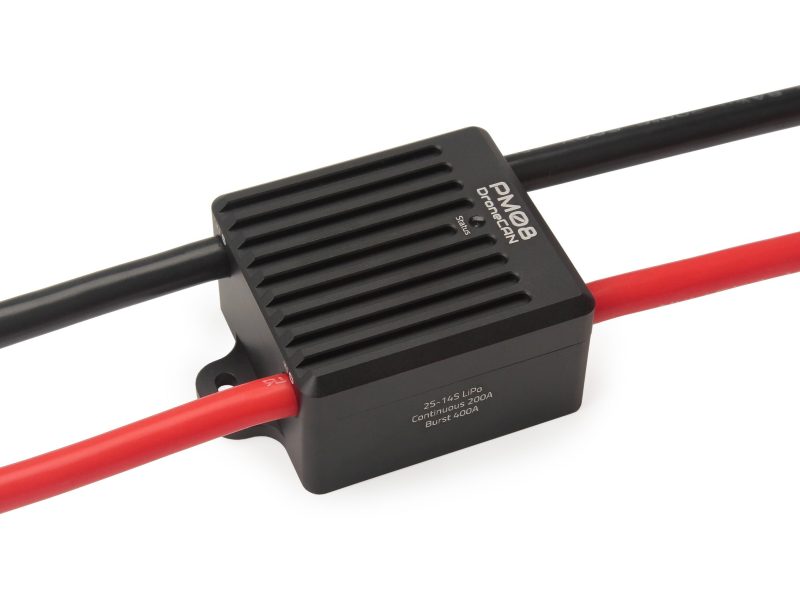

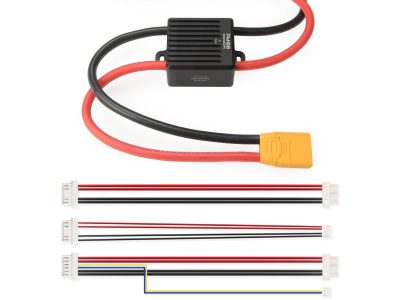

PM08-CAN Power Module 14S, 200A

Feature Supports 2-14S & 200A Cont, 400A Burst DroneCAN Communication Protocol Small & Compact Design Two 5V Outputs with Independent BEC IC and Circuitry Separated Sensor and BEC Board to…

Specifications

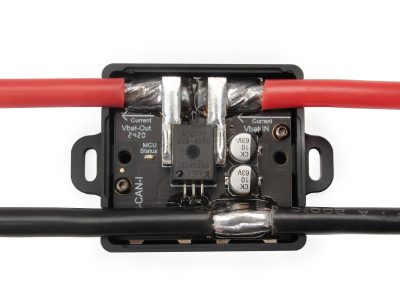

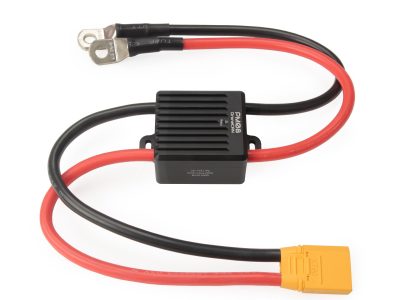

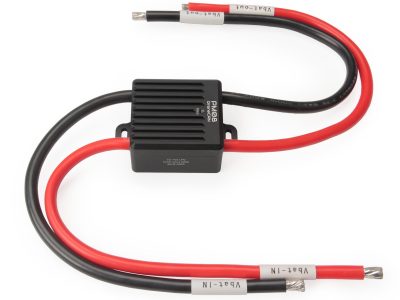

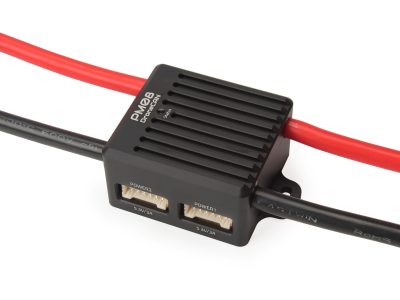

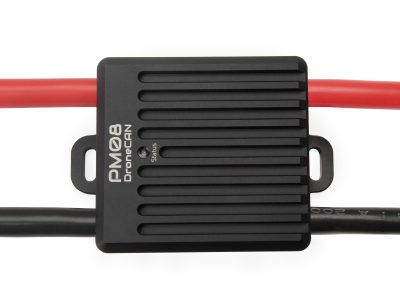

Feature Supports 2-14S & 200A Cont, 400A Burst DroneCAN Communication Protocol Small & Compact Design Two 5V Outputs with Independent BEC IC and Circuitry Separated Sensor and BEC Board to Minimize Electrical Noise Interference Galvanically Isolated Current Sensor IC ( AEC-Q100 Grade 1 qualified) High Accuracy Temperature Sensor for Temperature Monitor High-Efficiency Aluminum Heat Dissipation Shell Software toggle for CAN termination resistance Specifications Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM Voltage input: 7~60.9V (2S~14S) Continuous current:200A Burst current 400A @ 25℃ 1 sec 1000A @ 25℃ < 1 sec Max current sensing: 376A Voltage accuracy: ±0.1V Current accuracy: ±5% Temperature accuracy:±1℃ Wire gauge: 8 AWG (high-strand silicon-insulated) Power port output: 5.3V/3A each port Protocol: DroneCAN Operating temperature:-25℃~85℃ Software-Controlled CAN Termination Firmware upgrade: Support Calibration: Support Pinout Interface Type Power & CAN Port: Molex CLIK-Mate 2mm 6Pin Battery IN/OUT Options: XT90 Connectors Tinned Wires XT90 & Ring Terminals Status LED Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flashed Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection Flashing slowly (one-second intervals): CAN is successfully connected Mechanical Spec Size: 45mm×41mm×26mm (Not Include Cable) Weight: 185g (Include Cable) Reference Links PX4 & Flight Controller Setup Instruction PM08CAN 3D CAD File Dow nload P ower Module Dimension
