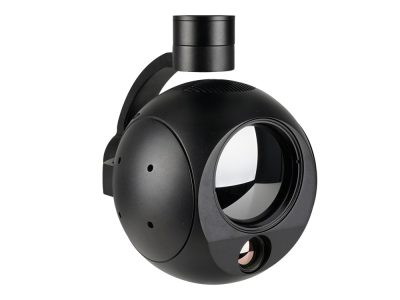

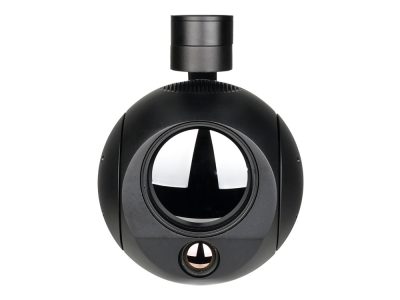

QIR1975T

Dual-Sensor Tracking Series

Hardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current430~1250mA @16VPower consumptionAverage 6.9W, Max 20WWorking environment temp.-20℃ ~ +50℃Output (optional)micro HDMI(1080P 50fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps)Local-storageTF card…

Specifications

Working voltage 16V
Input voltage 4S ~ 6S (14.8V~25.2V)
Output voltage 5V (connect with PWM)
Dynamic current 430~1250mA @16V
Power consumption Average 6.9W, Max 20W
Output (optional) micro HDMI(1080P 50fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps)
Video storage format in TF card MP4(1080P 30fps)
Vibration angle Pitch/Roll/Yaw: ±0.02°
One-key to center √

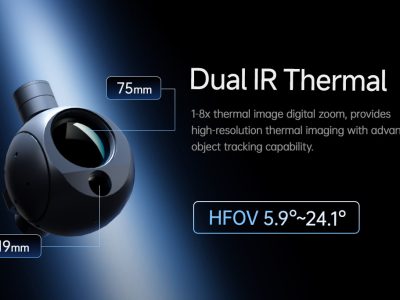

Focus Length 75mm
Horizontal FOV 5.9°
Vertical FOV 4.7°
Diagonal FOV 7.5°

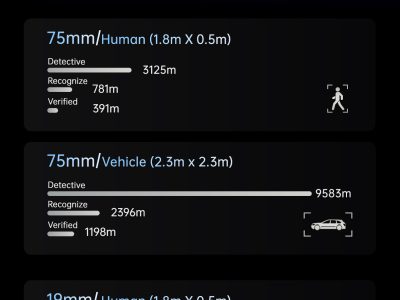

Detective Distance (Man 1.8x0.5m): 3125 meters
Recognize Distance (Man 1.8x0.5m): 781 meters
Verified Distance (Man 1.8x0.5m): 391 meters
Detective Distance (Car 4.2x1.8m): 9583 meters
Recognize Distance (Car 4.2x1.8m): 2396 meters
Verified Distance (Car 4.2x1.8m): 1198 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel pitch 12μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette white hot, black hot, pseudo color
Auto Non-uniform correction Yes (no shutter)
Get a Quote

Hardware ParameterWorking voltage16VInput voltage4S ~ 6S (14.8V~25.2V)Output voltage5V (connect with PWM)Dynamic current430~1250mA @16VPower consumptionAverage 6.9W, Max 20WWorking environment temp.-20℃ ~ +50℃Output (optional)micro HDMI(1080P 50fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps)Local-storageTF card (Up to 512G,class 10, FAT32 format)Picture storage format in TF cardJPG(1920*1080) Video storage format in TF cardMP4(1080P 30fps)
