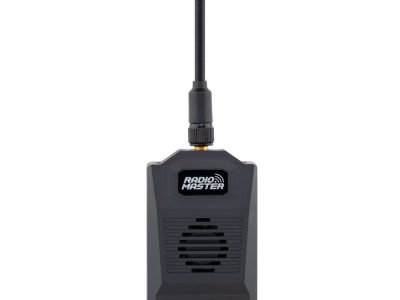

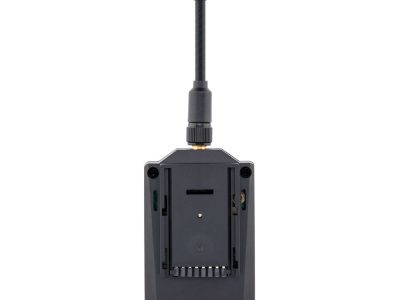

Ranger Nano 2.4GHZ ELRS Module

Want to experience the efficiency, stability, and low-latency link of the ExpressLRS protocol without purchasing a new radio? RadioMaster has you covered! Featuring F-1000Hz refresh rates and a high-efficiency cooling…

Specifications

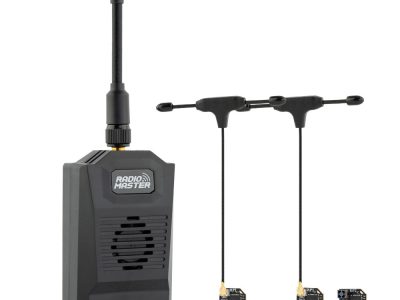

Want to experience the efficiency, stability, and low-latency link of the ExpressLRS protocol without purchasing a new radio? RadioMaster has you covered! Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer. The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications. *Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules . For more information on the Ranger series, please click here . Features Built-in ExpressLRS Backpack High-efficiency cooling system Wifi and Bluetooth support Packet rates up to F-1000Hz T-antenna included With the Nano connector, support Zorro radio Specification Item: Ranger Nano Module Regulatory Domain: ISM2400 MCU: ESP32(main), ESP8285(aux,as ESP backpack) RF chip: SX1281IMLTRT Frequency Range: 2400 MHz – 2480 MHz Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later) Minimum receiver refresh rate: 25Hz Wifi Support: Yes Bluetooth support: Yes XT30 Power supply voltage: DC 6V – 16.8V Weight: 48g (with antenna) / 39g (without antenna) Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna) Size Ranger Series We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/ Ranger 2.4GHz ELRS Module Ranger Micro 2.4GHZ ELRS Module Ranger Nano 2.4GHZ ELRS Module 2.4GHz T Antenna 2.4GHz Moxon Antenna How to Replace Ranger Nano Board Download Ranger Nano User Manual Package Includes 1 * Ranger Nano Module 1 * T Antenna Need receivers too? Purchase the Ranger Nano Combo, which includes the following items: 2 * RP1 ExpressLRS 2.4ghz Nano Receiver 1 * RP2 ExpressLRS 2.4ghz Nano Receiver Ranger Nano is installed with ExpressLRS as standard. ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It’s highly customizable and perfect for RC enthusiasts looking for reliability and efficiency. Pair your ExpressLRS with Radiomaster’s top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you. Find out more about ExpressLRS here
