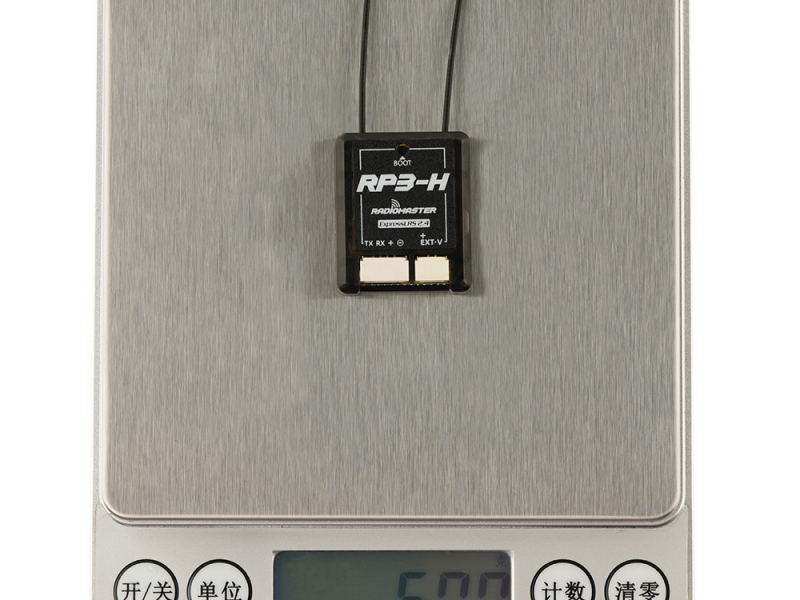

RP3-H ExpressLRS 2.4GHz Nano Receiver

Designed specifically for use with our Nexus Control System and compatible with all CRSF/S.BUS enabled flight controllers the RP3-H ExpressLRS receiver comes with a built-in TCXO and an integrated housing…

Specifications

Designed specifically for use with our Nexus Control System and compatible with all CRSF/S.BUS enabled flight controllers the RP3-H ExpressLRS receiver comes with a built-in TCXO and an integrated housing design that makes the receiver tougher and ready to mount in modern helicopter frames. With the RP3-H receiver, you can get reliable, stable, and accurate signal reception, which enhances your flight experience and allows for superior performance even in demanding environments. The RP3-H also features an Ext-V telemetry input for compatibility with older ESCs that do not provide battery voltage telemetry via the control unit. The RP3-H receiver uses the Skyworks SKY66112 power amplifier to increase telemetry performance, the PA provides up to 100mw of telemetry power, and antenna switching for antenna diversity. It is developed around the ESP8285 MCU and SX1281IMLTRT RF Chip, offering Lora and FLRC 2.4GHz RF links that provide incredible range and low latency. With Wifi built-in, firmware updates can be done on your craft without the need to remove the receiver. Features Perfect for helicopters and any application that needs a rugged cased serial receiver Plug’n’play solder free RP3-H ExpressLRS receivers compatible with NEXUS Heli flight controller Optimized PCB design for better heat dissipation LNA for better receiver range PA for better telemetry range Antenna Diversity for improved signal stability and range Built-in a TCXO (temperature compensated crystal oscillator) Automatically detects voltage telemetry of external battery voltage or receiver battery/ESC BEC voltage Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS Specifications Item: RP3-H ExpressLRS 2.4GHz Nano Receiver Type: ISM MCU: ESP8285 RF Chip: SX1281 Telemetry RF power: Max 100mW Antenna: 150mm 2.4GHz Antenna x2 Frequency Range: 2.404 – 2.479 GHz Maximum receive refresh rate: 500Hz / F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: DC 4.5 – 8.4V Battery voltage detection range: DC 4.0 – 35V Weight: 5.1g (Including two antenna) Dimension: 28mm*24mm*8mm Firmware Version: ExpressLRS v3.3.1 pre-installed FW Target: RadioMaster RP3-H Diversity 2400 RX Bus interface: CRSF/S.Bus TCXO (temperature compensated crystal oscillator) The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click here to learn more about the TCXO. A special thanks to the Rotorflight development team who without their hardwork and dedication this project would not have been possible. Learn more about Rotorflight HERE . Dimensions RadioMaster RP Series Receivers RP1 ELRS 2.4ghz Nano Receiver RP2 ELRS 2.4ghz Nano Receiver RP3 ELRS 2.4ghz Nano Receiver RP4TD ELRS 2.4ghz Diversity Receiver RP3-H ELRS 2.4ghz Nano Receiver Download RP3-H Receiver User Manual Package Includes 1 * RP3-H ExpressLRS 2.4GHz Nano Receiver 2 * 150mm IPX1 2.4GHz T Antenna (installed) 1 * JST-GH CRSF 4 wire Pigtail 1 * JST-GH 4 wire to JST-GH CRSF cable 1 * JST-GH 4 wire to single Servo pin (single dupont connectors) 1 * Voltage telemetry wire 1 * Quick start guide RP3-H Receiver is installed with ExpressLRS as standard. ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It’s highly customizable and perfect for RC enthusiasts looking for reliability and efficiency. Pair your ExpressLRS with Radiomaster’s top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you. Find out more about ExpressLRS here
