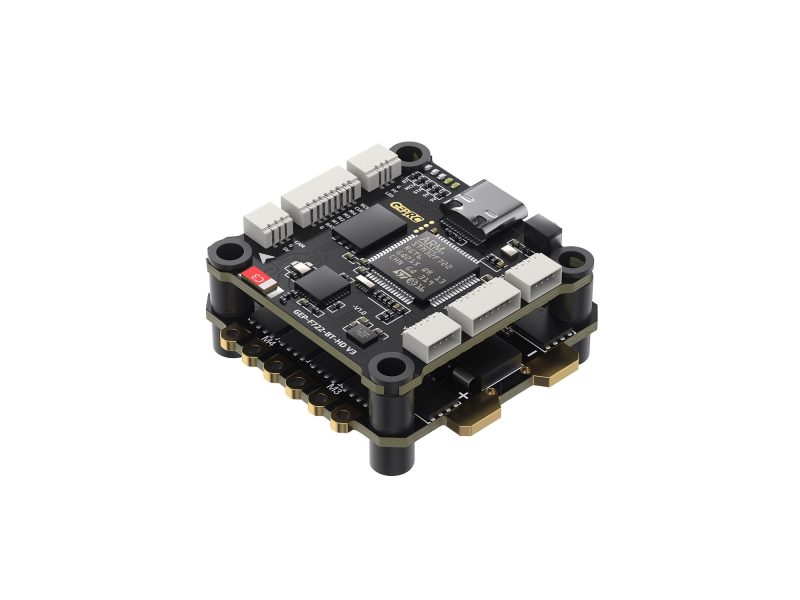

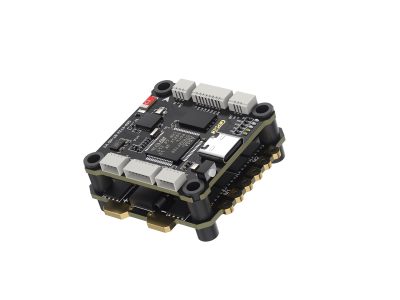

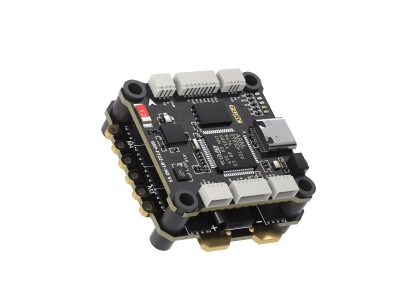

TAKER F722 BT 32Bit 50A STACK

Important Update Regarding Bluetooth Function Feb 25, 2026: Due to temporary hardware adjustments, the current batch of the Stack does not support Bluetooth wireless parameter tuning. Please rest assured that…

Specifications

Important Update Regarding Bluetooth Function Feb 25, 2026: Due to temporary hardware adjustments, the current batch of the Stack does not support Bluetooth wireless parameter tuning. Please rest assured that the flight controller and ESC perform flawlessly in all other aspects. The resumption time for this feature will be announced separately. We apologize for any inconvenience this may cause! Feature 1. Use mainstream STM32F722 chip 2. Equipped with the latest 42688-P gyroscope 3. 512M black box storage 4. Support Bluetooth parameter tuning 5. Integrated LC filter 6. Upgrade type-C USB interface 7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight 8. Directly plugs into the DJI Air Unit 9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance 10. Integrated Barometer 11. [email protected] + 5V@3A dual independent BEC Specifications GEP-F722-BT-HD V3 Flight Controller MCU: STM32F722 IMU: ICM42688-P(SPI) Air Unit Connection: Directly plugs into the DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A, [email protected] dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g GEP-BL32 50A 96K 4IN1 ESC Model: GEP-BL32 50A 96K 4IN1 ESC Input Voltage: 3-6S Lipo Continue Current: 50A Burst Current: 55A (5 second) Galvanometer: Support Telemetry: Support Support Protocol: Dshot 150/300/600 Size: 42.5×42.1mm，hole30.5×30.5mm Weight: 14g Target: ST_G0_05 – 31.92 Includes 1 x FC board 1 x ESC board 1 x Capacitor 1 x O3 3-in-1 connection cable 1 x FC adapter cable 1 x sh1.0 4pin silicone cable 1 x Camera connection cable 1 x VTX connection cable 1 x XT60 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x Nylon nuts 12 x Silicone anti-shake pads
