Walksnail Avatar HD Mini 1s Kit

FPV Controller

Features: 1080P/60fps 3.1V-13V 22ms low latency Power 500mW Built-in 8G storage 6.8g light weight Bullet Points: 1080P/60FPS,720P/120FPS The Avatar HD system uses H.265 code,an industry-leading technology, to provide 1080p FPV…

Specifications

Default Title
SKU: WN04-1004S
$109.00
1080P/60fps
2.1mm / 170° FOV
8GB Built-in
Power 500mW
Get a Quote

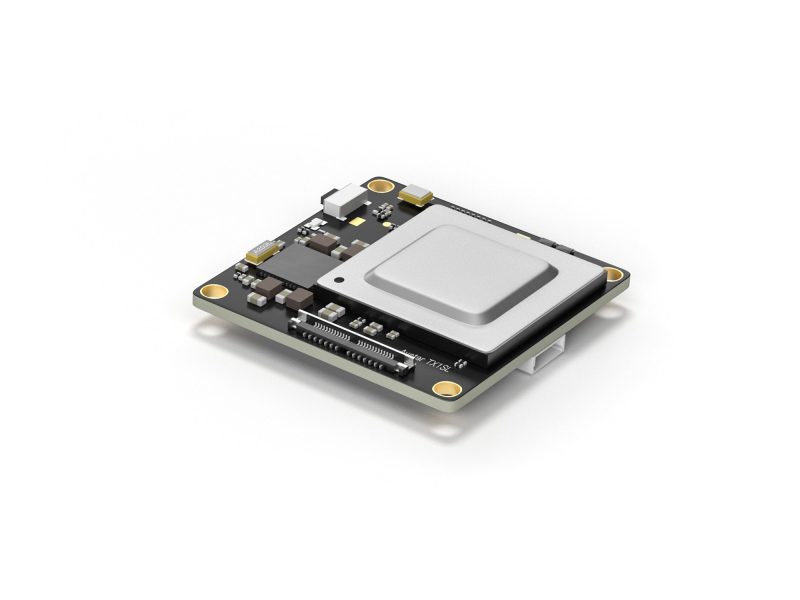

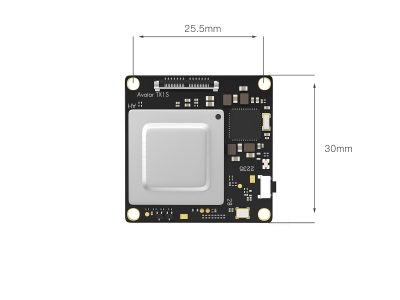

Features: 1080P/60fps 3.1V-13V 22ms low latency Power 500mW Built-in 8G storage 6.8g light weight Bullet Points: 1080P/60FPS,720P/120FPS The Avatar HD system uses H.265 code,an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. 6.8g light weight board The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad. 22ms Low Latency Supports both high frame rate and standard frame rate, in high frame rate,it has an average latency of 22ms. 8G Built-in Storage The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p with 60fps or 720p with 100fps/60fps HD flight videos without interference. Specification Camera Model Avatar nano Image Sensor 1/2.7”1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2.1mm FOV 170° Aperture F2.0 Shutter Rolling shutter Min.Illumination 0.001Lux Weight 3.5g Dimensions 14*14*17mm Coaxial Cable 55mm（default）/90mm VTX Model Avatar mini 1s module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm I/O Interface JST1.0*4(Power in) HSG0.8*4(USB) Mounting Holes 25.5*25.5mm Dimensions 30*30*6.5mm Storage 8G Recording 1080p/720p Weight 6.8g Operating Temperature -20-40℃ Channels 8 Wide Power Input 3.1V-5V(V2) / 3.1V-13V(V3) Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot OSD Canvas mode Bitrate 25mbps 50mbps Latency Average latency 22ms Antenna IPEX VTX Antenna Model Avatar V2 antenna Polarization LHCP Bandwidth 5600MHz-6000MHz Average Gain 1.9dBi VSWR ＜1.5 Line Length 90mm Input Impedance 50Ω Interface IPEX-1 Dimension D15mm*L105mm Weight 2g
