XBP9X Telemetry Radio

Holybro XBP9X Radio can be configured easily using Digi’s free XCTU software or via Digi’s simplified AT or API command sets. The Radios provide secure, reliable delivery of critical data…

Specifications

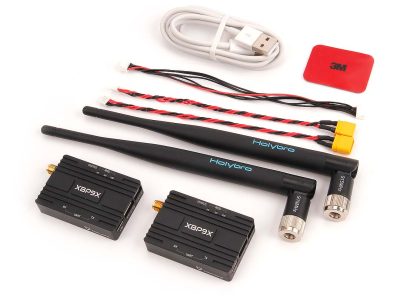

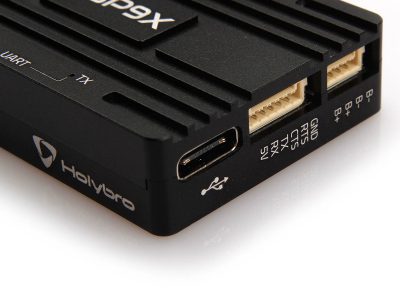

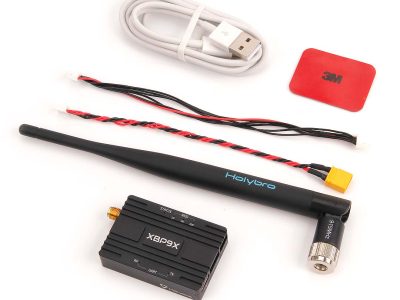

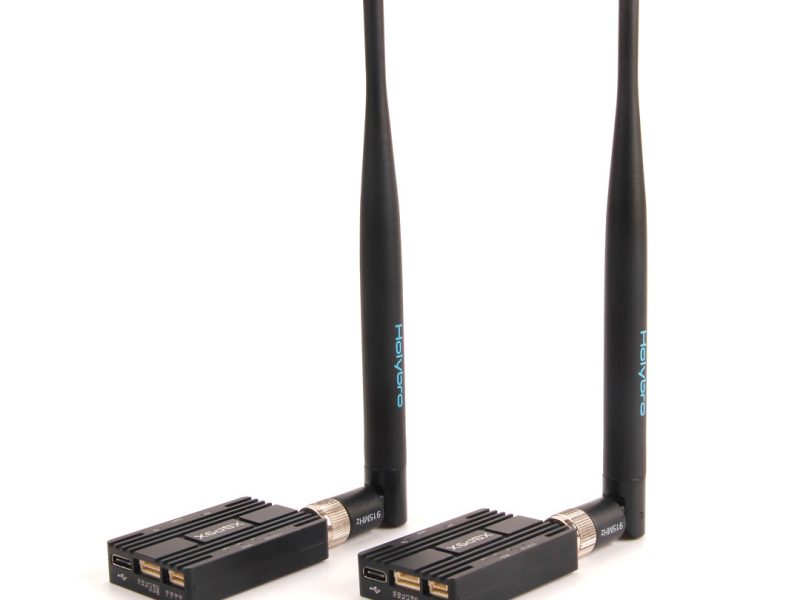

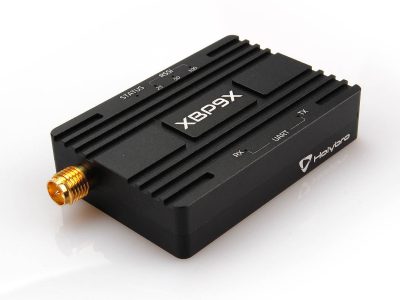

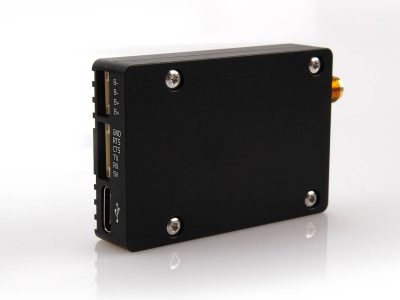

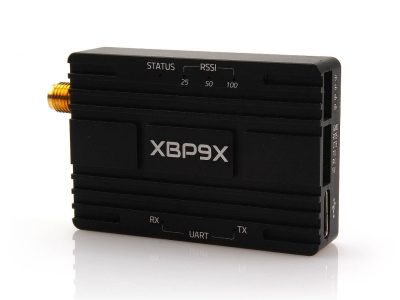

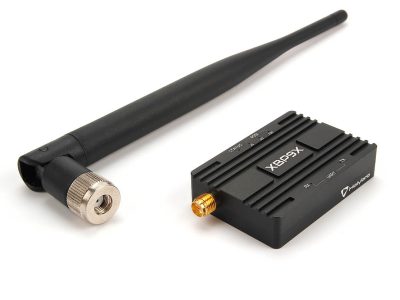

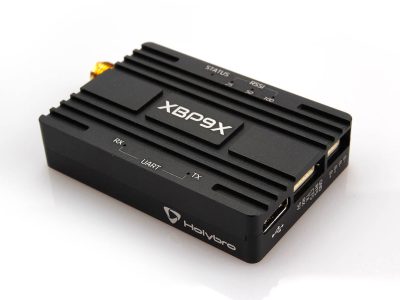

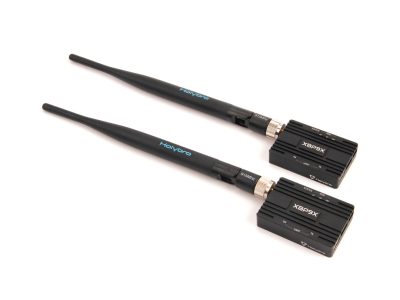

Holybro XBP9X Radio can be configured easily using Digi’s free XCTU software or via Digi’s simplified AT or API command sets. The Radios provide secure, reliable delivery of critical data between devices with 256-bit AES encryption. With RF line-of-sight ranging up to 65 miles* and strong interference blocking capabilty, the Radios are ideal for those applications requiring the combination of range, data redundancy and data reliability. FCC ID :MCQ-XBPSX Features: USB Type-C port, integrated USB to UART converter 6-position JST-GH connector, can be directly connected to pixhawk4 flight controller High voltage BEC on board, Support DC7~35V voltage supply Can be powered by USB or flight controller in 100mW transmit power mode UART transmission LED indicator Three-stage RSSI LED indicator 256-bit AES encryption for secure data communications DigiMesh networking topology for redundancy and reliability Fully certified for use in unlicensed 900 MHz band SPECIFICATIONS FREQUENCY RANGE ISM 902 to 928 MHz TRANSMIT POWER (Software Selectable) Up to 30 dBm* CHANNELS 10 hopping sequences share 50 frequencies RF DATA RATE Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s MAXIMUM DATA THROUGHPUT High data rate: 120 kb/s AVAILABLE CHANNEL FREQUENCIES Low and middle data rate: 101; High data rate: 50 RECEIVER SENSITIVITY Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm RECEIVER IF SELECTIVITY Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB RECEIVER RF SELECTIVITY Below 900 MHz and above 930 MHz; > 50 dB RURAL RANGE LINE OF SIGHT Low data rate: Up to 105 km (65 mi) URBAN RANGE LINE OF SIGHT Low data rate: Up to 18 km (11 mi) INDOOR RANGE Low data rate: Up to 300 m (1,000 feet) MODULATION Gaussian Frequency Shift Keying Gaussian Frequency Shift Keying SPREADING TECHNOLOGY Frequency Hopping Spread Spectrum (FHSS) SUPPORTED NETWORK TOPOLOGIES (Software Selectable) Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh ENCRYPTION Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command. Power Supply voltage: 5V DC from USB or 6-position JST-GH (100mW) 7~35V DC form 4-position JST-GH (500mW or 1000mW) Transmit current: 300 mA/5V at 20dBm 500mA/7V at 27dBm 800 mA/7V at 30dBm Receive current: 40 mA Serial interface: 3.3 V UART 51.9×35.4 x 11.5mm (without antenna) Please note: when 500MW or 1000MW output is taken, battery must be used for power supply, otherwise the transmission will be unstable. PIN OUTS Package Includes: 1x XBP9X Radio 1x Antenna 1x XT30 Power cable 1x GH 6P to 6P cable Download: XBP9X_Radio_QuickStartGuide XCTU_UserGuide
