A20KTR-24HD

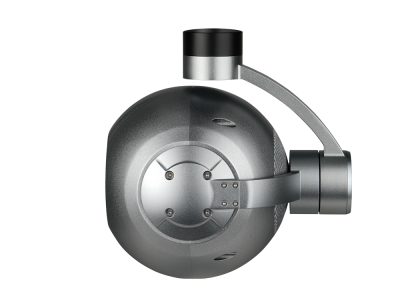

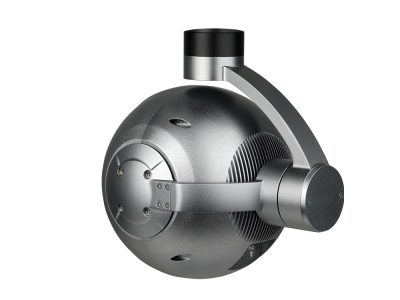

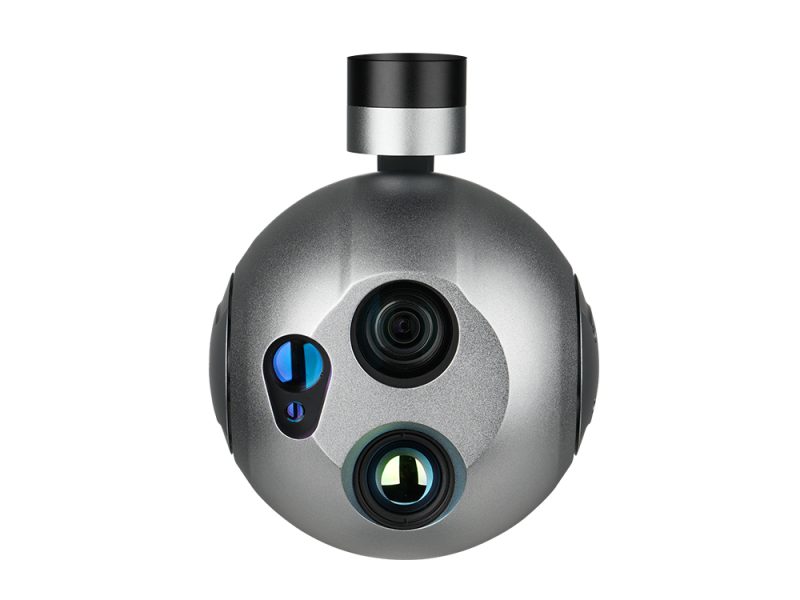

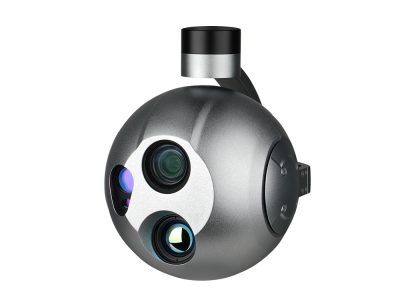

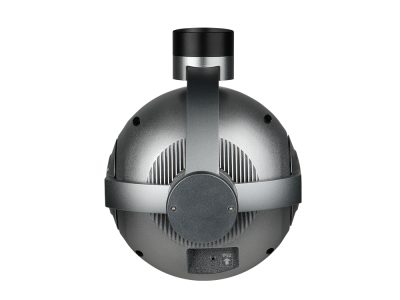

1280 IR Thermal SeriesThe A20KTR-24HD is a 4K tri-light high-definition thermal imaging pod with AI tracking capabilities. Its main applications include detection, inspection, and search and rescue in non-visual environments, such as at…
Specifications
| N.W. | 1032 GHz |
|---|---|
| Product meas. | 161*130*201.8mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 890~1500mA @ 16V |
| Power consumption | Average 14.2W, Max 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| IP rate | IP4X |
| Output | Micro HDMI(1080P 60fps) / IP (RTSP/UDP 4K/1080P/720P 30fps H264/H265) |
| Storage | TF card (Up to 256 GHz,class 10, FAT32) |
| Picture in TF Card | JPG(4K:3840*2160) |
| Video in TF Card | MP4(4K@30fps) |
| Control method | PWM / S.BUS / UART (TTL) / TCP / UDP |
| Controllable Range | Pitch/Tilt: -45°～110°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Imager Sensor | 1/2.5" "Exmor R" CMOS |
| Total pixel | 8.51MP |
| Optical zoom | 20x, F2.0 to F3.8, f = 4.4~88.4 mm, up to 30x with Super Resolution |
| Digital zoom | 12x (240x with optical zoom) |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| shutter speed | 1/1 to 1/10000 sec |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority) |
| Focus | Auto/Manual |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Backlight compensation | Yes |
| Auto ICR | Yes |
| Noise Reduction | Yes |
| Image stabilization(EIS) | Yes |
| Defog | Yes |
The A20KTR-24HD is a 4K tri-light high-definition thermal imaging pod with AI tracking capabilities. Its main applications include detection, inspection, and search and rescue in non-visual environments, such as at night or in low-light conditions, fires, and smoke. Overall SpecificationsN.W.1032gProduct meas.161*130*201.8mmInput voltage14.8V~25.2VDynamic current890~1500mA @ 16V Power consumptionAverage 14.2W, Max 24WWorking environment temp.-20℃ ~ +50℃
