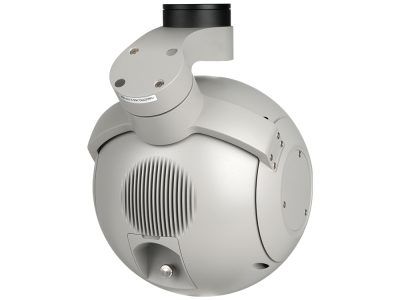

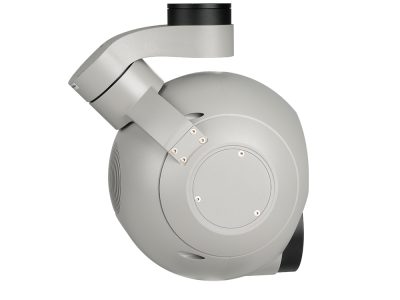

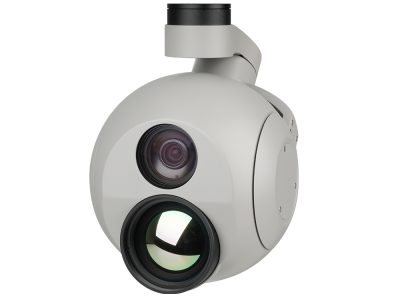

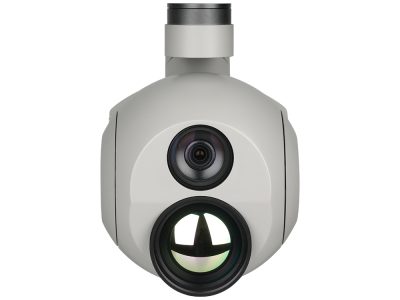

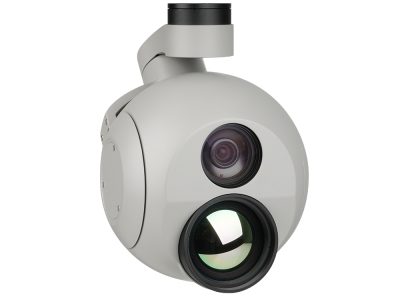

Q30TIR Pro

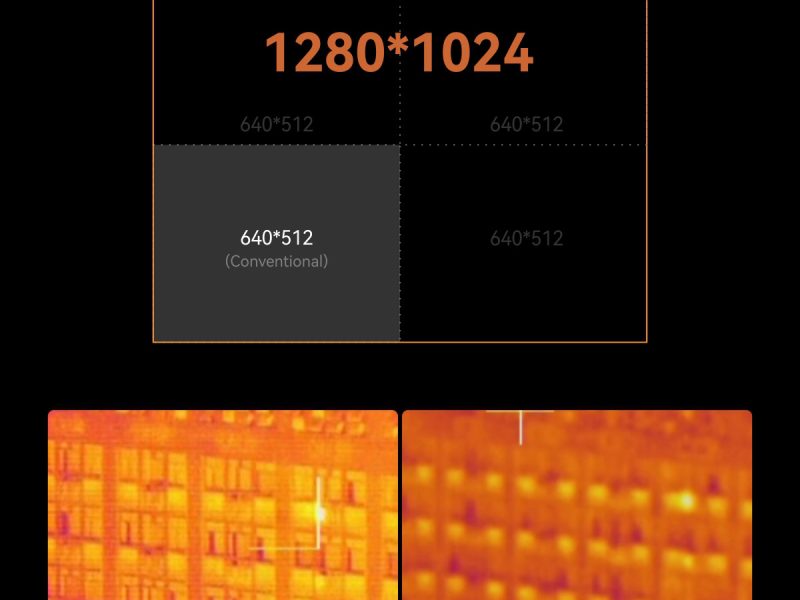

1280 IR Thermal Series30x Starlight Night Vision 1280 IR thermal Camera High-level Dual-sensor Tracking Payload Camera
Specifications
| Working voltage | 16V |
|---|---|
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 820~1500mA @16V |
| Power consumption | Average 13.1W , Max 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output (optional) | IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 512 GHz,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |
| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Mechanical Range | Pitch/Tilt: -110°~130° , Roll: ±40° , Yaw/Pan: ±360°*N |
| Controllable Range | Pitch/Tilt: -45°~125° , Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |

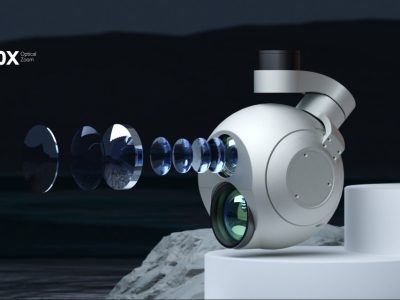

| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0°(wide end) ~ 2.4°(tele end) |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| White balance | Auto, ATW , Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
30x Starlight Night Vision 1280 IR thermal Camera High-level Dual-sensor Tracking Payload Camera
Frequently Asked Questions
Is this product in stock?
Yes — this item ships from our Shenzhen warehouse within 1–3 business days. Stock levels are updated regularly; contact our sales team for current availability and lead time on larger quantities.
Do you support OEM / ODM and custom branding?
Yes. As a factory-direct supplier we accept OEM/ODM orders including custom branding, packaging and firmware/parameter customization. Share your requirement with our sales team to get a tailored quote.
How do you ship, and what is the delivery time?
We ship worldwide via DHL, FedEx, UPS or air/sea freight. Small parcels usually arrive in 5–10 working days; bulk orders can be shipped by sea. Tracking is provided once the parcel leaves our warehouse.
Do you offer wholesale pricing and MOQ?
Yes, as a factory-direct supplier we offer wholesale pricing on this product. The minimum order quantity depends on the item and configuration — send your quantity and destination to our sales team and we will reply with an exact quote.
Do you provide warranty and after-sales support?
Yes, we provide technical support and after-sales service for our products. For the warranty terms specific to this product, contact our team and we will confirm the coverage period and the repair/replacement process.
Can you confirm compatibility before I order?
Yes. Before dispatch we can confirm that the product matches your radio, flight controller, goggles, frame or other equipment. Send us your build list and our engineers will verify compatibility before you place the order.
