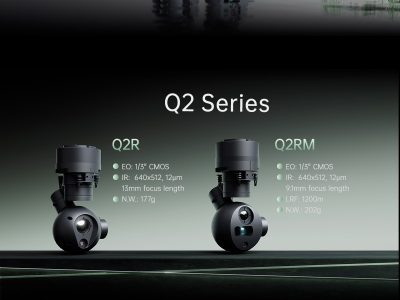

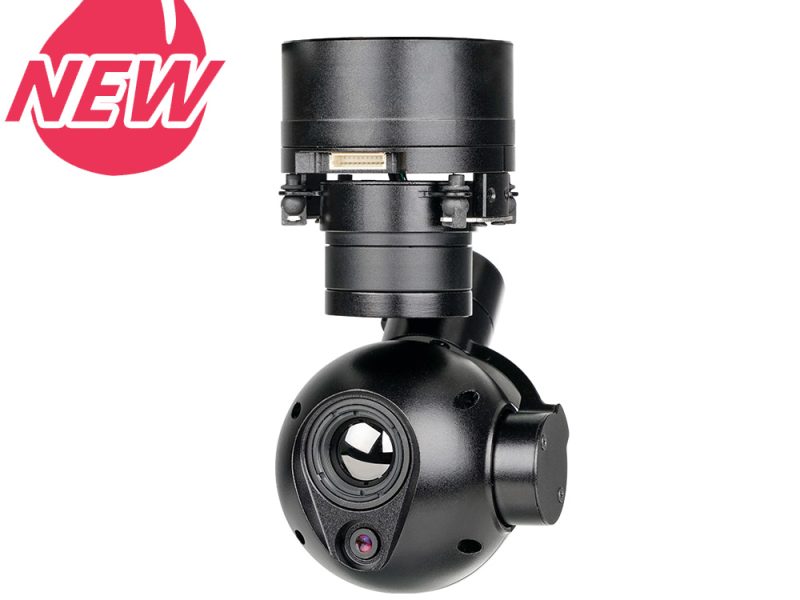

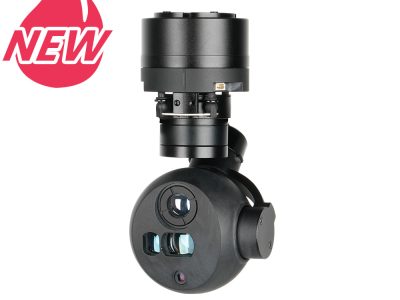

Q2R/Q2RM

Micro Gimbal cameras

Q2R Sepecification Overall SpecificationsWorking voltage12~25.2VDynamic current250~600mA @ 16VPower consumptionAverage 4W, Max 9.6WVideo Output Ethernet：IP (RTSP 1080p 25fps H264/H265) Control methodTTL or S.BUS (choose one of them, and TTL by default),…

Specifications

Working voltage 12~25.2V
Dynamic current 250~600mA @ 16V
Power consumption Average 4W, Max 9.6W
Control method TTL or S.BUS (choose one of them, and TTL by default), and TCP
IP Rating IP4X
Product Weight about 190 GHz

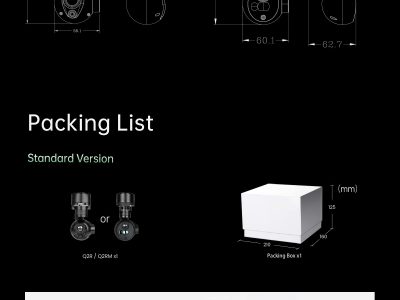

Product Dimensions 56.1*50*111.5mm
Vibration angle Pitch/Yaw: ±0.02°
One-key to center √

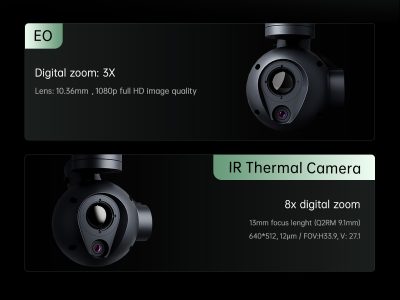

Imager Sensor 1/3" CMOS Sensor
Pixel size 2.9um
Resolution 1920*1080 @30fps
Focus Length 10.36mm
Angle of View 30°*17.1°
Digital zoom 1~3x
Aperture F1.1
Horizontal FOV 33.9°
Vertical FOV 27.1°
Detective Distance (Man 1.8x0.5m): 542 meters
Recognize Distance (Man 1.8x0.5m): 135 meters
Verified Distance (Man 1.8x0.5m): 68 meters
Detective Distance (Car 4.2x1.8m): 1661 meters
Recognize Distance (Car 4.2x1.8m): 415 meters
Verified Distance (Car 4.2x1.8m): 208 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Focusing method Athermal prime lens
Color palette White hot
Get a Quote

Q2R Sepecification Overall SpecificationsWorking voltage12~25.2VDynamic current250~600mA @ 16VPower consumptionAverage 4W, Max 9.6WVideo Output Ethernet：IP (RTSP 1080p 25fps H264/H265) Control methodTTL or S.BUS (choose one of them, and TTL by default), and TCPIP RatingIP4XWorking environment temp.-20℃~+50℃Product Weightabout 190gProduct Dimensions56.1*50*111.5mmGimbal SpecMechanical RangePitch/Tilt: -65°(Up)～135°(D
