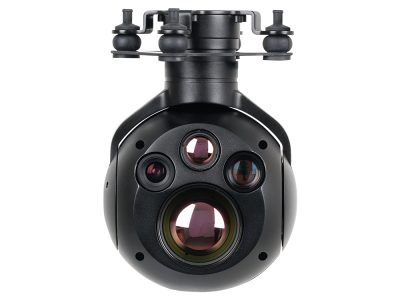

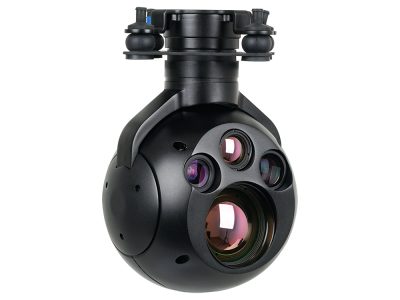

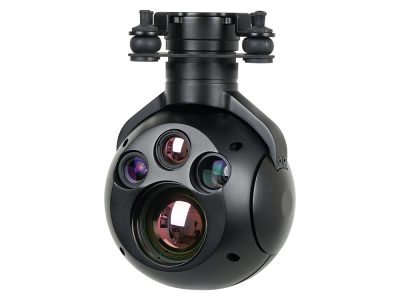

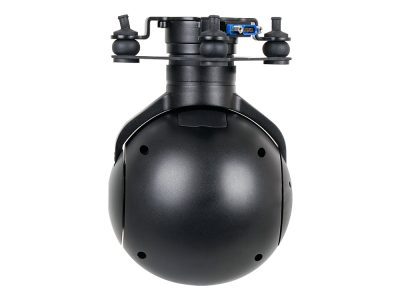

U7DER

Micro Gimbal cameras

Specification Hardware Parameter U7DERWorking voltage12V(3S)Output voltage5V (connect with PWM)Dynamic current900~1500mA @ 12VIdle current900mA @ 12VWorking environment temp.-20℃~+60℃OutputIP rtsp (1080p 30fps)Local-storageSD card (Up to 128G,class 10, FAT32 or ex FAT format)Photo…

Specifications

Working voltage 12V(3S)
Output voltage 5V (connect with PWM)
Dynamic current 900~1500mA @ 12V
Idle current 900mA @ 12V
Output IP rtsp (1080p 30fps)
Local-storage SD card (Up to 128 GHz,class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4 (1080P 25fps)
Control method TTL / S.BUS/ TCP
One-key to center √
Resolution 1920*1080 @60fps
Focus Length 7.2mm
Angle of View 42.28°*24.54°
Angle of View 1 32°*25.8°
Angle of View 2 12.5°*10°
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
Color palette White hot, pseudo color
Digital zoom 1x ~ 4x
Sync correct time Yes
Update rate of deviation pixel 60Hz
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Get a Quote

Specification Hardware Parameter U7DERWorking voltage12V(3S)Output voltage5V (connect with PWM)Dynamic current900~1500mA @ 12VIdle current900mA @ 12VWorking environment temp.-20℃~+60℃OutputIP rtsp (1080p 30fps)Local-storageSD card (Up to 128G,class 10, FAT32 or ex FAT format)Photo storage formatJPG(1920*1080)Video storage formatMP4 (1080P 25fps)Control methodTTL / S.BUS/ TCPGimbal SpecAngle scope of structure design
