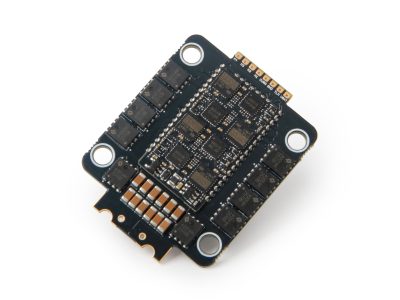

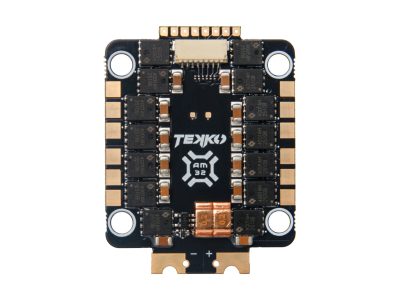

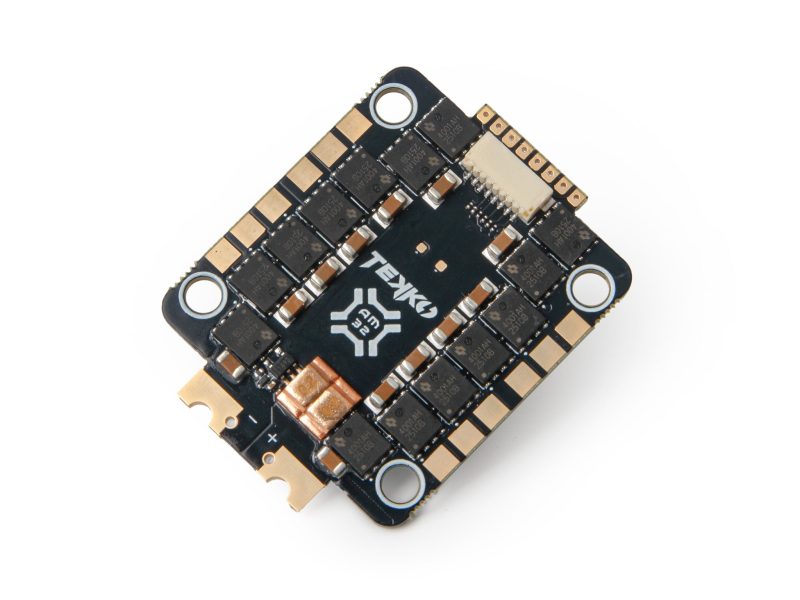

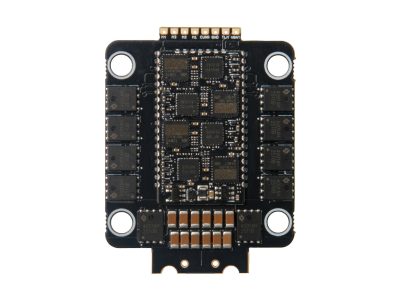

Tekko32 F4 4in1 50A ESC(AM32)

F4 MCU @150Mhz / PWM output up to 96K / 4~6S / AM32 / 30x30 The all new Tekko32 is the first 4in1 ESC in the market to adopt the…

Specifications

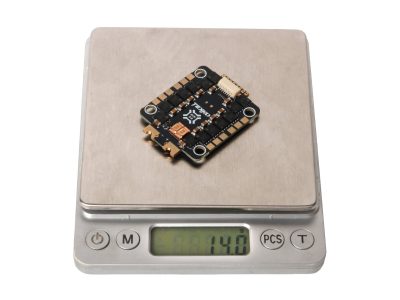

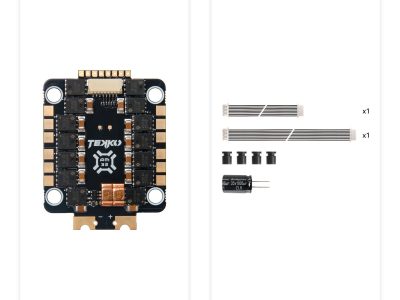

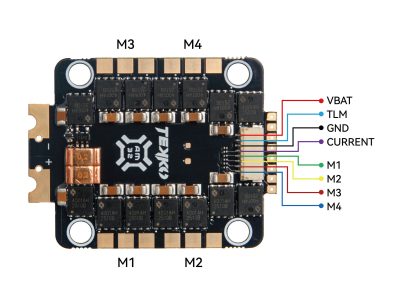

F4 MCU @150Mhz / PWM output up to 96K / 4~6S / AM32 / 30×30 The all new Tekko32 is the first 4in1 ESC in the market to adopt the fast F4 MCU @150Mhz, providing a smooth control operation and quick response. Hint: Use a power filter device with TVS diodes when pairing with low KV motors Features: New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM Frequency: 16k to 96k Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit. Specification: Continuous Current: 50A x4 Burst Current: 60A x4 Supports 4-6S battery Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM, etc. ESC telemetry Supported Onboard analog current sensor AM32 firmware (target: AM32_TEKKO32_4IN1_F421 ) No output BEC 1000uf 35v capacitor included (highly recommended for 6s setup) Amperage meter scale ratio: 120 (V1.9 Version) Dimensions: 48x37x6 mm / Weight: 13.8g Mounting holes: M4 30.5×30.5mm (M3 grommets included) PIN MAP Package includes: Tekko32 F4 4in1 50A ESC *1 M3 Anti-Vibration Silicone Grommet Insert *4 Electrolytic capacitor: 1000uF 35v *1 8-pin to 8-pin 1mm pitch 65mm cable *1 8-pin to 8-pin 1mm pitch 25mm cable *1 Reference Link AM32 ESC Firmware Overview AM32 ESC Configurator
